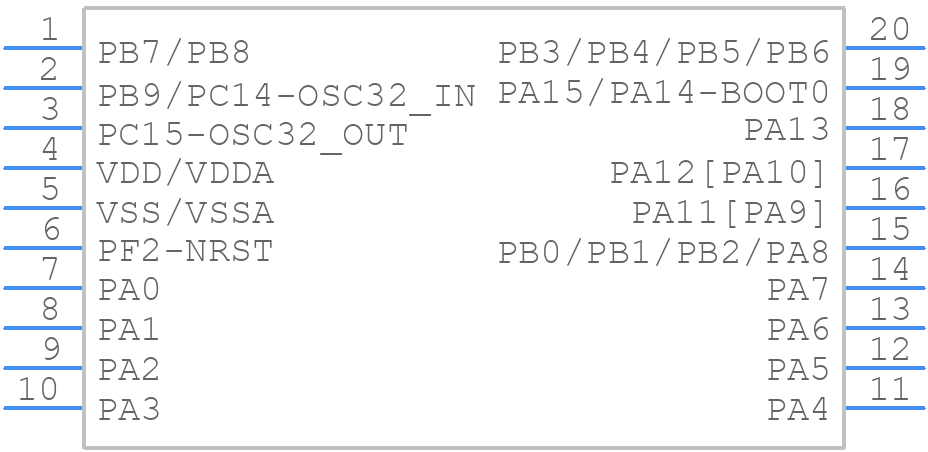

STM32G041F6P6TR - STMicroelectronics

STM32G041F6P6TR Details

• Manufacturer Part Number:

  STM32G041F6P6TR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TSSOP-20

• Country Of Origin:

  Mainland China, Philippines, Taiwan

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  Cortex-M0+

• Clock Frequency-Max:

  48 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e4

• Length:

  6.5 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of DMA Channels:

  5

• Number of External Interrupts:

  18

• Number of I/O Lines:

  18

• Number of Serial I/Os:

  3

• Number of Terminals:

  20

• Number of Timers:

  9

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP20,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  8192

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  64 MHz

• Supply Current-Max:

  6.9 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
