STM32G474CBU6 - STMicroelectronics

Description: Mainstream Arm Cortex-M4 MCU 170 MHz with 128 Kbytes of Flash memory, Math Accelerator, HR Timer, High Analog level integration

Download STM32G474CBU6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

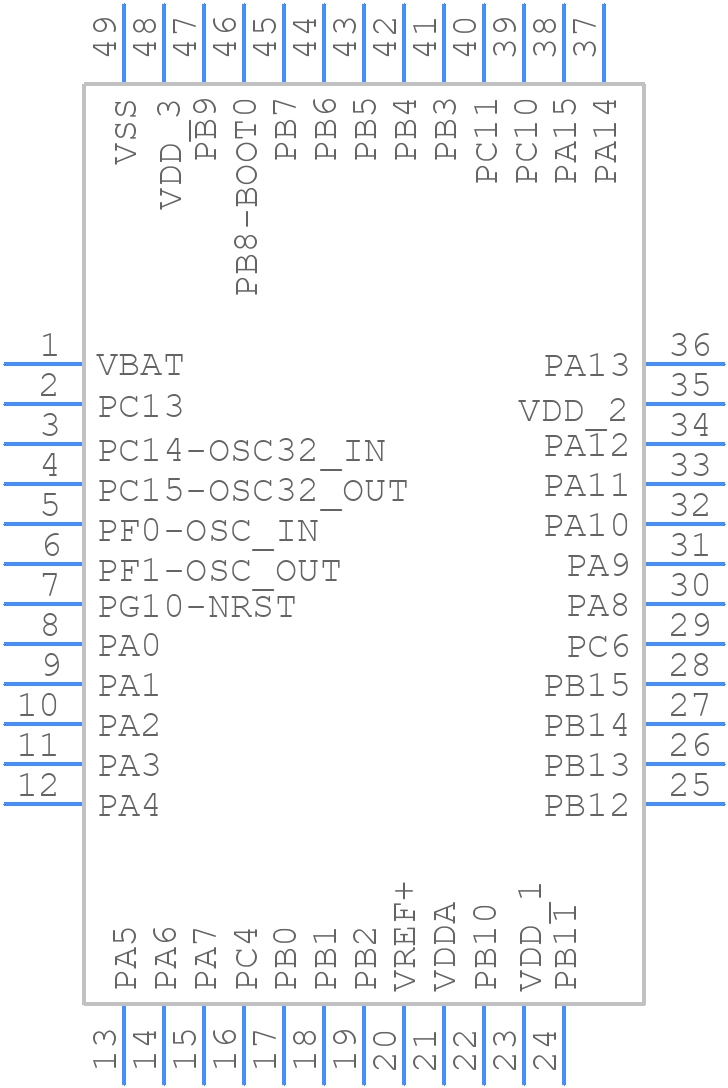

STM32G474CBU6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32G474CBU6 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN - 48 leads, 7x7 mm, 0.5 mm pitch
click to zoom
3D Models
STM32G474CBU6 - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN - 48 leads, 7x7 mm, 0.5 mm pitch
click to zoom

STM32G474CBU6 Details

  • Manufacturer Part Number:

    STM32G474CBU6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UFQFPN-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M4

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    16

  • Number of External Interrupts:

    16

  • Number of I/O Lines:

    42

  • Number of Serial I/Os:

    7

  • Number of Terminals:

    48

  • Number of Timers:

    15

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    131072

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.6 mm

  • Speed:

    170 MHz

  • Supply Current-Max:

    34 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32G474CBU6 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32G474CBU6 is -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -40°C to 85°C for optimal performance and reliability.
  • The clock system on the STM32G474CBU6 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT is a graphical user interface that allows you to select the clock sources, configure the clock dividers, and generate the corresponding code for your application.
  • The maximum frequency of the STM32G474CBU6 is 170 MHz. However, the actual operating frequency may be lower depending on the clock configuration and the application requirements.
  • The DMA controller on the STM32G474CBU6 can be used to transfer data between peripherals and memory without CPU intervention. To use the DMA controller, you need to configure the DMA channels, set up the transfer parameters, and enable the DMA interrupts. The STM32CubeG4 firmware package provides examples and documentation to help you get started with using the DMA controller.
  • The power consumption of the STM32G474CBU6 depends on the operating frequency, voltage, and application requirements. According to the datasheet, the typical power consumption of the STM32G474CBU6 is around 350 μA/MHz in Run mode and 2.5 μA in Stop mode. However, the actual power consumption may vary depending on the specific use case and design.
