STM32G484VEH6 - STMicroelectronics

Description: Mainstream Arm Cortex-M4 MCU 170 MHz with 512 Kbytes of Flash memory, Math Accelerator, HR Timer, High Analog level integration, Crypto

Download STM32G484VEH6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32G484VEH6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

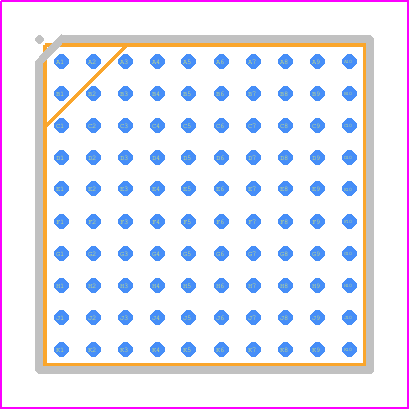

STM32G484VEH6 - STMicroelectronics PCB footprint - BGA - BGA - TFBGA 100 8x8x1.2 P 0.8 m
click to zoom
3D Models
STM32G484VEH6 - STMicroelectronics - 3D model - BGA - TFBGA 100 8x8x1.2 P 0.8 m
click to zoom

STM32G484VEH6 Details

  • Manufacturer Part Number:

    STM32G484VEH6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2019-12-16

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    48 MHz

  • DMA Channels:

    YES

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    86

  • Number of Terminals:

    100

  • PWM Channels:

    YES

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    170 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    8 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32G484VEH6 Frequently Asked Questions (FAQs)

  • The internal oscillator (HSI) can be clocked up to 64 MHz, but the maximum frequency depends on the voltage range and temperature. Refer to the datasheet for specific values.
  • Use the STM32CubeMX tool to generate the clock configuration code. It will help you to optimize the clock tree for your specific application.
  • The STM32G484VEH6 has a total of 128 KB of SRAM, but only 64 KB is accessible by the DMA controller. The remaining 64 KB is reserved for the CPU.
  • No, the USB OTG FS interface can only operate in one mode at a time. You need to switch between device and host modes using the OTG_FS_GNPTXSTS register.
  • Use the STM32Trust Anchor (STA) library, which provides a secure boot mechanism using the STM32G484VEH6's built-in security features, such as the ROM bootloader and the option bytes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32G484VEH6 Overview

Use the download button to access the STM32G484VEH6 schematic symbol, PCB footprint, and 3D model.
