STM32H743VGH6 - STMicroelectronics

Description: High-performance and DSP with DP-FPU, Arm Cortex-M7 MCU with 1MBytes of Flash memory, 1MB RAM, 480 MHz CPU, L1 cache, external memory interface, JPEG codec, large set of peripherals

Download STM32H743VGH6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32H743VGH6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

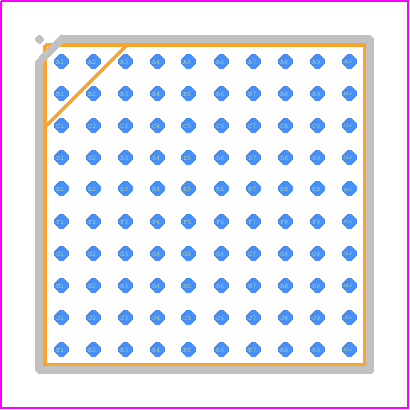

STM32H743VGH6 - STMicroelectronics PCB footprint - BGA - BGA - TFBGA 100 PIN
click to zoom
3D Models
STM32H743VGH6 - STMicroelectronics - 3D model - BGA - TFBGA 100 PIN
click to zoom

STM32H743VGH6 Details

  • Manufacturer Part Number:

    STM32H743VGH6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-100

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2019-05-03

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    8

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    CORTEX-M7

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • Format:

    FLOATING-POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B100

  • Length:

    8 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    4

  • Number of I/O Lines:

    82

  • Number of Serial I/Os:

    11

  • Number of Terminals:

    100

  • Number of Timers:

    21

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA100,10X10,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    1085440

  • ROM (words):

    1048576

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.1 mm

  • Speed:

    480 MHz

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    8 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32H743VGH6 Frequently Asked Questions (FAQs)

  • The STM32H743VGH6 can operate from -40°C to 125°C (junction temperature), but the maximum operating temperature range for the specific application depends on the package type, PCB design, and thermal management.
  • The clock tree configuration depends on the specific application requirements. Generally, it's recommended to use the HSE (High-Speed External) clock as the main clock source, and configure the PLL (Phase-Locked Loop) to generate the desired clock frequencies. The STM32CubeMX tool can help with clock tree configuration.
  • The STM32H743VGH6 has 1MB of Flash memory and 864KB of SRAM. However, the available memory for the application depends on the configuration and usage of the internal peripherals, such as the FPU (Floating-Point Unit) and the Ethernet interface.
  • The STM32H743VGH6 has a built-in ROM bootloader that supports secure boot and firmware updates. The STM32CubeMX tool provides a secure firmware update (SFU) feature that generates a secure firmware image. Additionally, the STM32H743VGH6 has a hardware-based security feature called TrustZone, which can be used to implement secure boot and firmware updates.
  • The power consumption of the STM32H743VGH6 depends on the clock frequency, voltage, and peripheral usage. In low-power mode, the device can consume as low as 20µA/MHz. In high-performance mode, the device can consume up to 400mA. The STM32CubeMX tool provides a power consumption calculator to estimate the power consumption based on the application requirements.
