STM32H7S3L8H6H - STMicroelectronics

Description: Arm® Cortex®-M7 32-bit 600 MHz MCU, 64 KB flash, 620 KB RAM, Ethernet, 2x USB, 2x FD-CAN, advanced graphics and security, 2x 12-bit ADCs

Download STM32H7S3L8H6H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32H7S3L8H6H - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

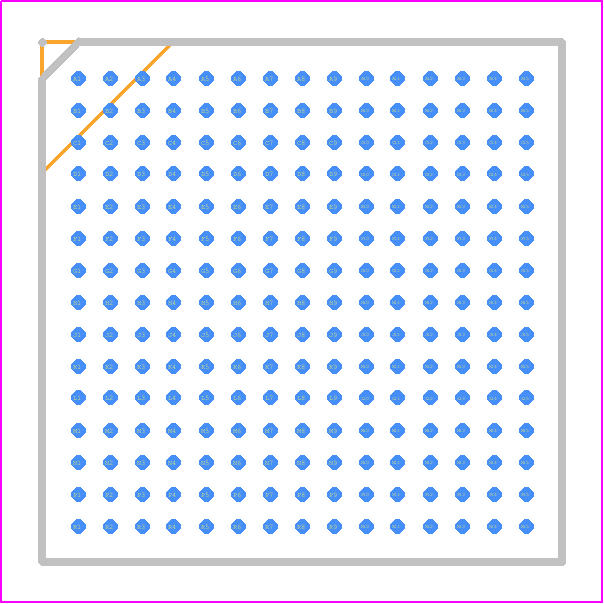

STM32H7S3L8H6H - STMicroelectronics PCB footprint - BGA - BGA - TFBGA 225 13x13x1.2 P 0.8 mm_2024
click to zoom
3D Models
STM32H7S3L8H6H - STMicroelectronics - 3D model - BGA - TFBGA 225 13x13x1.2 P 0.8 mm_2024
click to zoom

STM32H7S3L8H6H Details

  • Manufacturer Part Number:

    STM32H7S3L8H6H

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32H7S3L8H6H Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32H7S3L8H6H is 480 MHz, but it can be overclocked to 500 MHz with a reduced voltage range.
  • The internal voltage regulator (VOS) can be configured using the PWR_VOS register. For optimal power consumption, set the VOS to the lowest voltage required by your application, taking into account the clock frequency and peripherals used.
  • The STM32H7S3L8H6H has a total of 1.4 MB of SRAM, but only 1 MB of it can be used for DMA transfers. The remaining 0.4 MB is reserved for the CPU and other peripherals.
  • To enable the Ethernet peripheral, you need to configure the RMII clock, enable the Ethernet clock, and set the Ethernet mode using the ETH registers. You also need to configure the PHY chip using the MDIO interface.
  • The USB OTG HS interface on the STM32H7S3L8H6H supports data transfer rates up to 480 Mbps.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32H7S3L8H6H Overview

Use the download button to access the STM32H7S3L8H6H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
