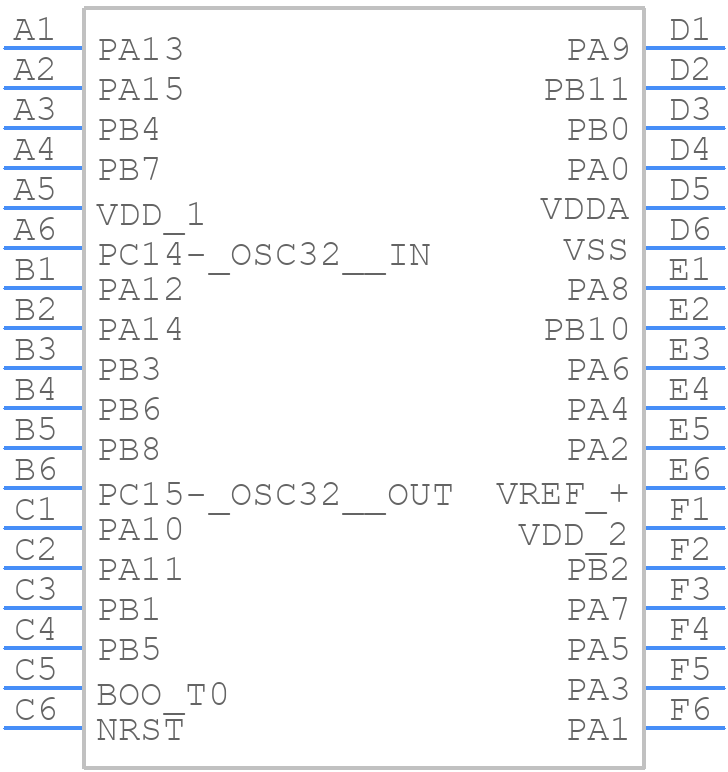

STM32L051T8Y6DTR - STMicroelectronics

STM32L051T8Y6DTR Details

• Manufacturer Part Number:

  STM32L051T8Y6DTR

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  VFBGA, BGA36,6X6,16

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Singapore

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  CORTEX-M0

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PBGA-B36

• JESD-609 Code:

  e1

• Length:

  2.88 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of DMA Channels:

  7

• Number of I/O Lines:

  29

• Number of Terminals:

  36

• Number of Timers:

  5

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA36,6X6,16

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  8192

• ROM (words):

  65536

• ROM Programmability:

  FLASH

• Seated Height-Max:

  0.59 mm

• Speed:

  32 MHz

• Supply Current-Max:

  6.8 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Width:

  2.61 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
