STM32L052K8T7 - STMicroelectronics

Description: Ultra-low-power 32-bit MCU Arm®-based Cortex®-M0+, up to 64 KB Flash memory, 8 KB SRAM, 2 KB EEPROM, USB, ADC, DAC

Download STM32L052K8T7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

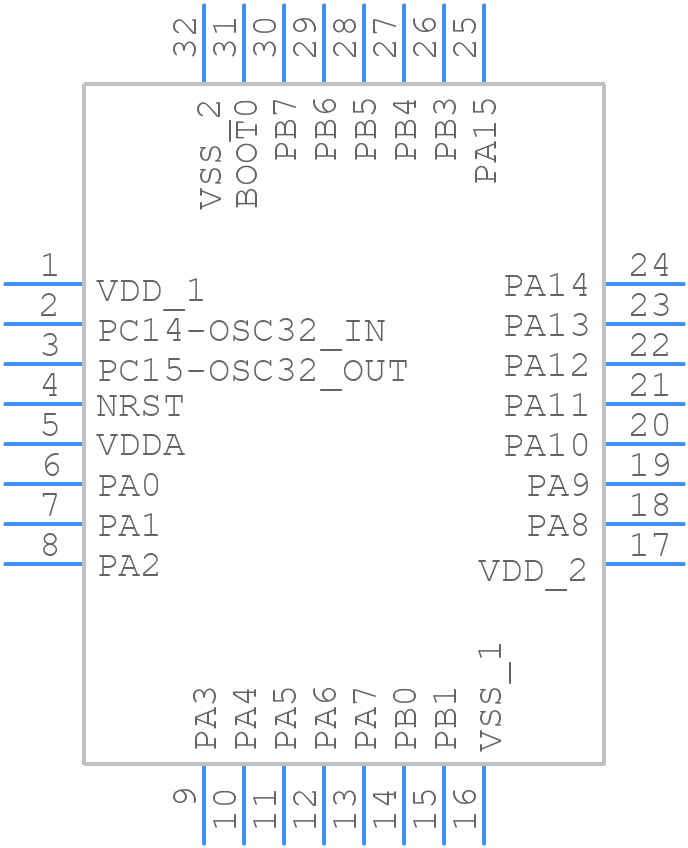

STM32L052K8T7 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32L052K8T7 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-pin, 7 x 7mm_2020
click to zoom
3D Models
STM32L052K8T7 - STMicroelectronics - 3D model - Quad Flat Packages - 32-pin, 7 x 7mm_2020
click to zoom

STM32L052K8T7 Details

  • Manufacturer Part Number:

    STM32L052K8T7

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    CORTEX-M0

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    7

  • Number of I/O Lines:

    25

  • Number of Terminals:

    32

  • Number of Timers:

    6

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32L052K8T7 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32L052K8T7 is 32 MHz, which can be achieved using an external crystal oscillator or a high-speed internal oscillator (HSI).
  • The clock settings for the STM32L052K8T7 can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). The RCC register is used to select the clock source, while the PWR register is used to configure the voltage regulator and power modes.
  • The power consumption of the STM32L052K8T7 varies depending on the power mode. In Run mode, the current consumption is around 350 μA/MHz. In Low Power Sleep mode, the current consumption is around 10 μA. In Stop mode, the current consumption is around 2 μA. In Standby mode, the current consumption is around 0.5 μA.
  • The ADC on the STM32L052K8T7 can be used by configuring the ADC clock, selecting the ADC channel, and enabling the ADC conversion. The ADC result can be read from the ADC data register. The ADC can be triggered by a software trigger or an external trigger.
  • The maximum communication speed of the USART on the STM32L052K8T7 is 4.5 Mbps. However, the actual communication speed may be limited by the baud rate generator and the clock frequency.
