STM32L072CZU6 - STMicroelectronics

Description: Ultra-low-power 32-bit MCU Arm®-based Cortex®-M0+, up to 192KB Flash, 20KB SRAM, 6KB EEPROM, USB, ADC, DACs

Download STM32L072CZU6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

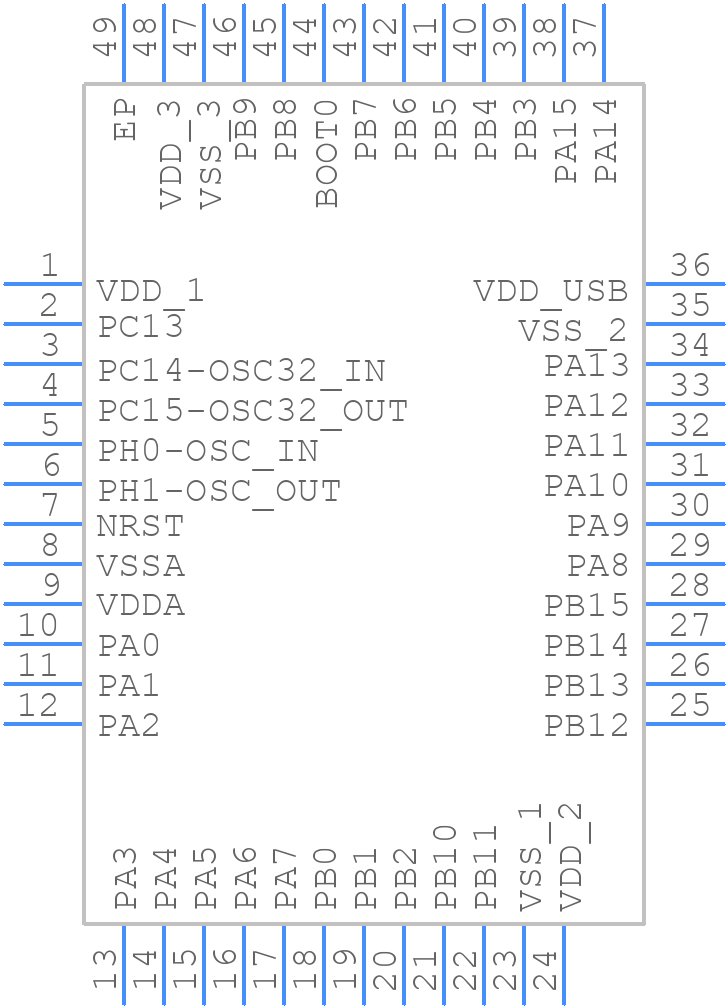

STM32L072CZU6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32L072CZU6 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48-Pin UFQFPN--
click to zoom
3D Models
STM32L072CZU6 - STMicroelectronics - 3D model - Quad Flat No-Lead - 48-Pin UFQFPN--
click to zoom

STM32L072CZU6 Details

  • Manufacturer Part Number:

    STM32L072CZU6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Date Of Intro:

    2019-11-18

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    25 MHz

  • DMA Channels:

    YES

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    37

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - immersion

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32L072CZU6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32L072CZU6 is 32 MHz, but it can be overclocked to 48 MHz with a reduced voltage range.
  • The internal oscillator (HSI) can be configured using the RCC_ICSCR register. Set the HSION bit to enable the oscillator, and then trim the oscillator frequency using the HSITRIM bits.
  • The VBAT pin is used to connect a battery or a supercapacitor to the microcontroller. It is used to power the real-time clock (RTC) and the backup registers when the main power supply is turned off.
  • The STM32L072CZU6 has several low-power modes, including Sleep, Stop, and Standby. These modes can be entered using the PWR_EnterSleepMode(), PWR_EnterStopMode(), and PWR_EnterStandbyMode() functions from the STM32L0 HAL library.
  • The maximum current consumption of the STM32L072CZU6 depends on the operating frequency and voltage. At 32 MHz and 3.3V, the maximum current consumption is around 13 mA. In low-power modes, the current consumption can be as low as 1.5 μA.
