STM32L072CZU6TR - STMicroelectronics

Description: Ultra-low-power 32-bit MCU Arm®-based Cortex®-M0+, up to 192KB Flash, 20KB SRAM, 6KB EEPROM, USB, ADC, DACs

Download STM32L072CZU6TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

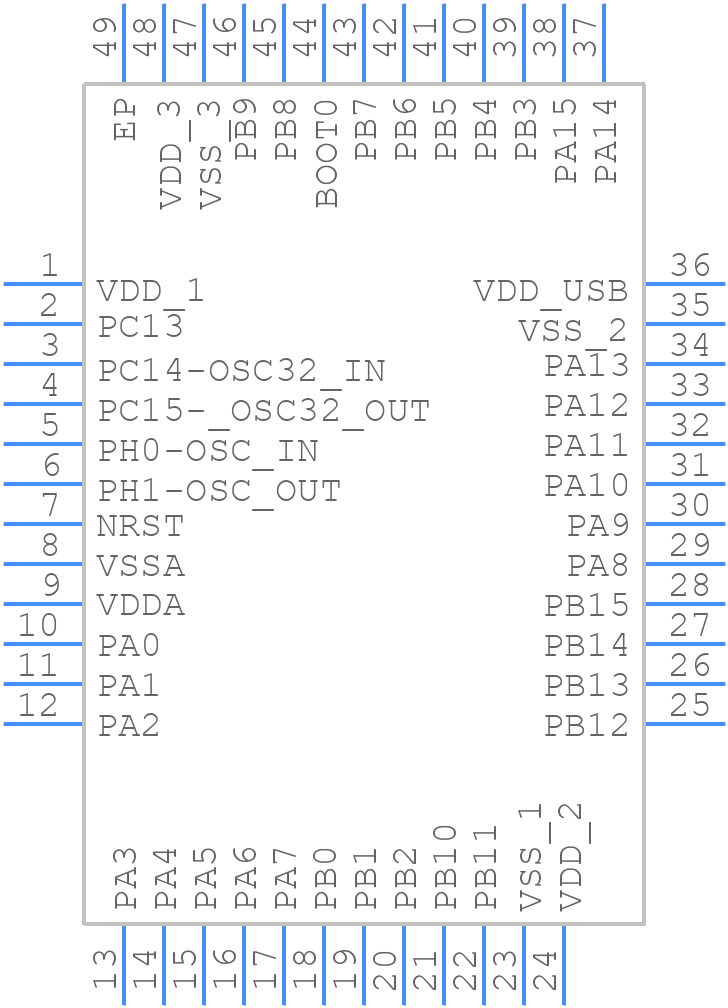

STM32L072CZU6TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32L072CZU6TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN48-ren1
click to zoom
3D Models
STM32L072CZU6TR - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN48-ren1
click to zoom

STM32L072CZU6TR Details

  • Manufacturer Part Number:

    STM32L072CZU6TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Date Of Intro:

    2019-11-18

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    25 MHz

  • DMA Channels:

    YES

  • Length:

    7 mm

  • Number of I/O Lines:

    37

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32L072CZU6TR Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32L072CZU6TR is 32 MHz, which can be achieved using an external crystal oscillator or an internal high-speed internal oscillator (HSI).
  • The STM32L072CZU6TR consumes approximately 350 nA/MHz in low-power mode (Stop mode) with the RTC clock enabled, and around 1.3 μA in ultra-low-power mode (Standby mode) with the RTC clock disabled.
  • No, the STM32L072CZU6TR is not 5V tolerant. It operates on a voltage range of 1.8V to 3.6V, and exceeding this range may damage the device.
  • The STM32L072CZU6TR has 2 UARTs (USART1 and USART2), which can be used for serial communication.
  • Yes, the STM32L072CZU6TR has a USB 2.0 full-speed device interface, which can be used for USB applications such as device mode, host mode, and On-The-Go (OTG) mode.
