STM32L081CZU6 - STMicroelectronics

Description: Access line ultra-low-power 32-bit MCU Arm®-based Cortex®-M0+, up to 192KB Flash, 20KB SRAM, 6KB EEPROM, ADC, AES

Download STM32L081CZU6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

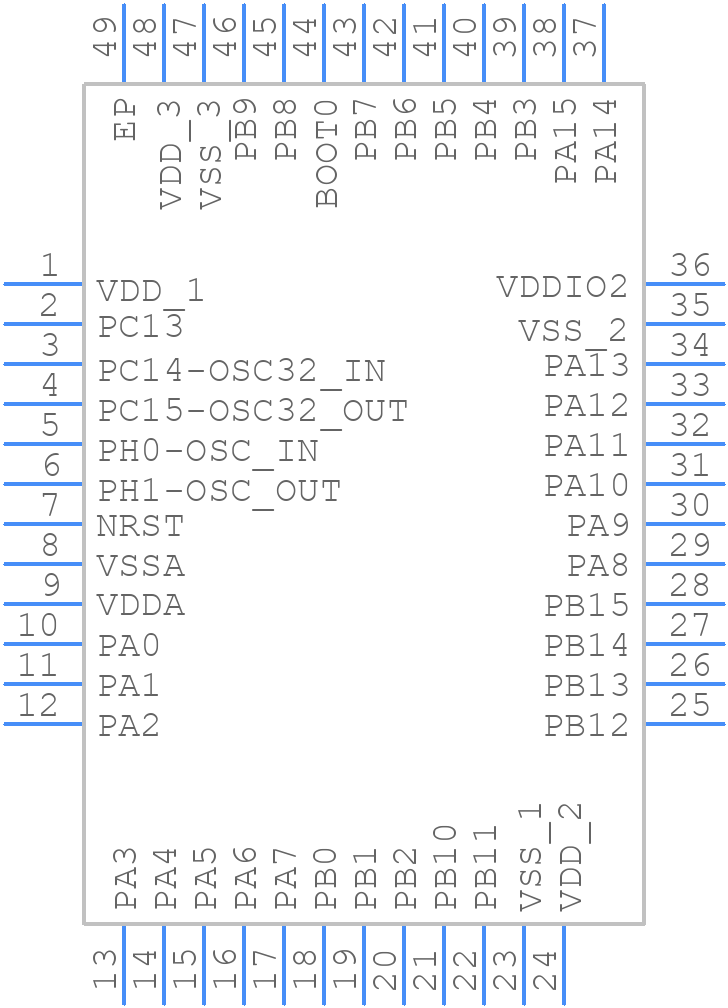

STM32L081CZU6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32L081CZU6 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . UFQFPN48 - 48-lead
click to zoom
3D Models
STM32L081CZU6 - STMicroelectronics - 3D model - Quad Flat No-Lead - . UFQFPN48 - 48-lead
click to zoom

STM32L081CZU6 Details

  • Manufacturer Part Number:

    STM32L081CZU6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    25 MHz

  • DMA Channels:

    YES

  • Length:

    7 mm

  • Number of I/O Lines:

    40

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32L081CZU6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32L081CZU6 is 32 MHz, which can be achieved using an external crystal oscillator or a high-speed internal oscillator (HSI).
  • The STM32L081CZU6 has several low power modes, including Sleep, Stop, and Standby. To configure these modes, you need to use the Power Controller (PWR) and the Clock Controller (RCC) peripherals. You can also use the STM32CubeMX tool to generate code for low power mode configuration.
  • Yes, the STM32L081CZU6 has a flexible memory architecture that allows it to interface with external memory devices, such as SRAM, NOR Flash, and NAND Flash. You can use the Flexible Static Memory Controller (FSMC) peripheral to interface with external memory devices.
  • To implement a bootloader on the STM32L081CZU6, you need to use the Bootloader software component provided by STMicroelectronics. This component provides a set of APIs and examples to help you develop a custom bootloader. You can also use the STM32CubeMX tool to generate bootloader code.
  • The maximum amount of current that the STM32L081CZU6 can supply to an external device depends on the specific pin and the operating conditions. According to the datasheet, the maximum output current of the STM32L081CZU6 is 20 mA per pin, with a total maximum current of 100 mA for all pins combined.
