STM32L412K8U6 - STMicroelectronics

Description: Ultra-low-power Arm® Cortex®-M4 32-bit MCU+FPU, 100DMIPS, up to 128KB flash, 40KB SRAM, analog, ext. SMPS

Download STM32L412K8U6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

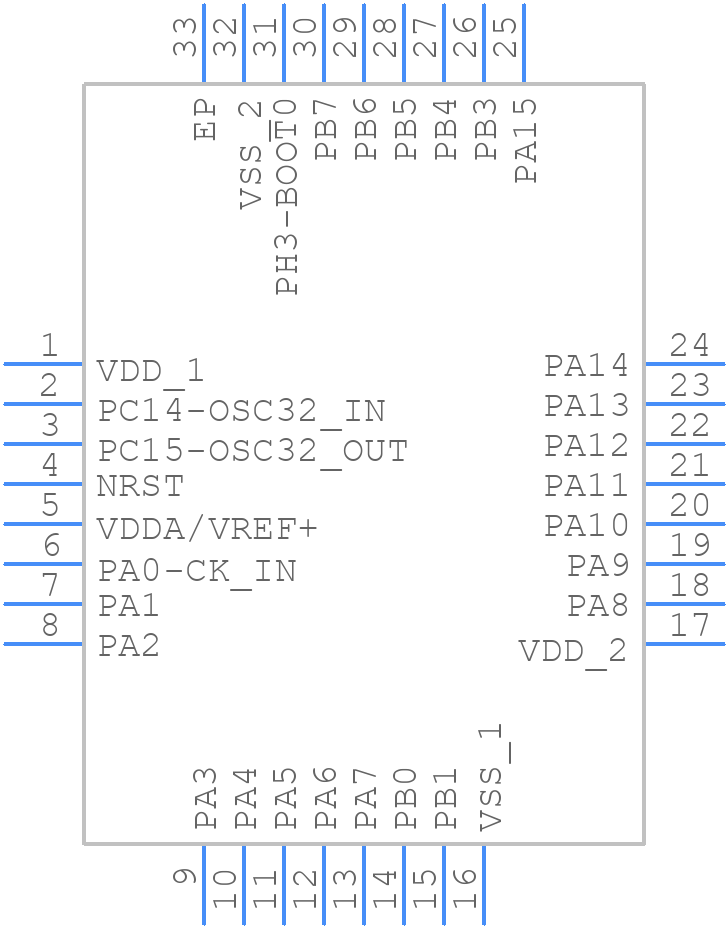

STM32L412K8U6 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32L412K8U6 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN-32
click to zoom
3D Models
STM32L412K8U6 - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN-32
click to zoom

STM32L412K8U6 Details

  • Manufacturer Part Number:

    STM32L412K8U6

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn) - immersion

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32L412K8U6 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32L412K8U6 is 32 MHz.
  • The internal oscillator on the STM32L412K8U6 can be configured using the RCC (Reset and Clock Control) registers. You need to enable the HSI (High-Speed Internal) oscillator and set the clock source to HSI using the RCC_CFGR register.
  • The VBAT pin on the STM32L412K8U6 is used to connect a battery or a supercapacitor to store the backup registers and the real-time clock (RTC) when the device is powered off.
  • The STM32L412K8U6 has several low-power modes, including Sleep, Stop, and Standby. These modes can be entered using the PWR (Power) registers. You need to configure the power mode, enable the low-power mode, and then use the WFI (Wait For Interrupt) or WFE (Wait For Event) instruction to enter the low-power mode.
  • The maximum current consumption of the STM32L412K8U6 depends on the operating frequency and the peripherals used. According to the datasheet, the maximum current consumption is around 350 mA at 32 MHz with all peripherals enabled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32L412K8U6 Overview

Use the download button to access the STM32L412K8U6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
