STM32L562CET6P - STMicroelectronics

Description: Ultra-low-power Arm® Cortex®-M33 32-bit MCU+TrustZone®+FPU, 165DMIPS, up to 512KB Flash, 256KB SRAM, SMPS, AES+PKA

Download STM32L562CET6P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

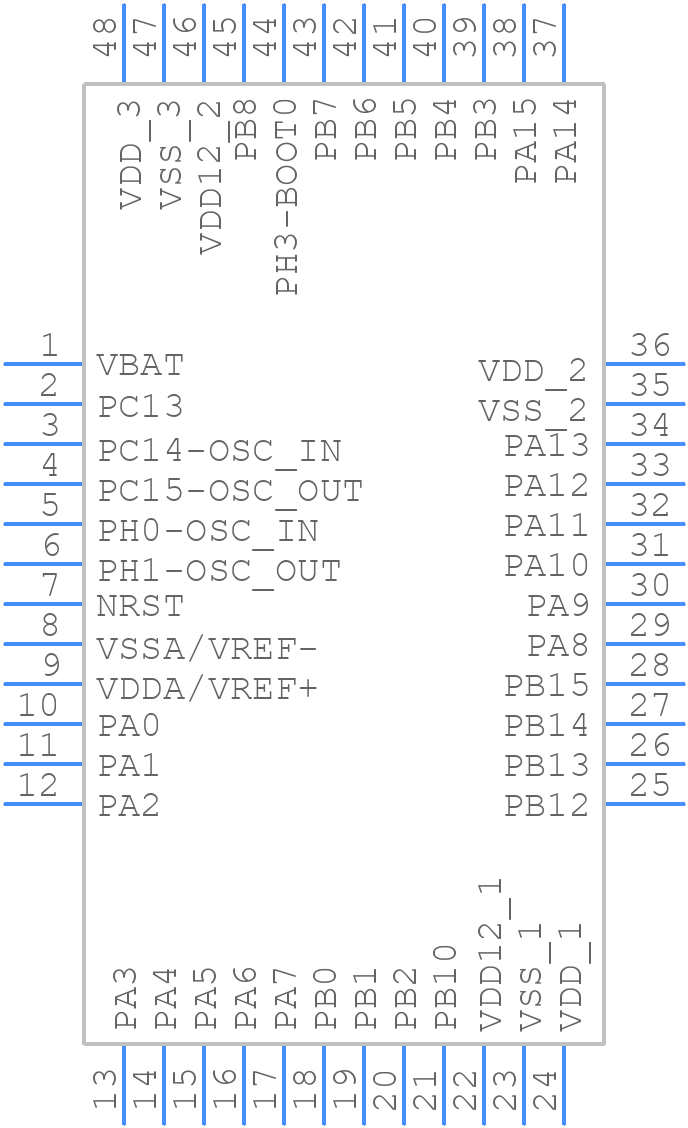

STM32L562CET6P - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

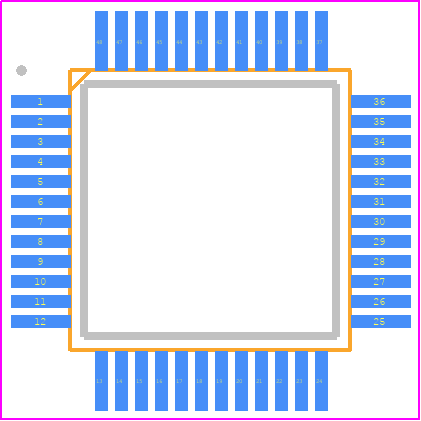

STM32L562CET6P - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - . LQFP48 outline*1
click to zoom
3D Models
STM32L562CET6P - STMicroelectronics - 3D model - Quad Flat Packages - . LQFP48 outline*1
click to zoom

STM32L562CET6P Details

  • Manufacturer Part Number:

    STM32L562CET6P

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2019-12-23

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    48 MHz

  • DMA Channels:

    YES

  • Length:

    7 mm

  • Number of I/O Lines:

    38

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Packing Method:

    TRAY

  • Speed:

    110 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32L562CET6P Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32L562CET6P is -40°C to 85°C (industrial grade) and -40°C to 125°C (extended grade).
  • The internal clock source can be configured using the Clock Security System (CSS) and the Power Management Unit (PMU) registers. The HSE (High-Speed External) clock, LSE (Low-Speed External) clock, HSI (High-Speed Internal) clock, and LSI (Low-Speed Internal) clock can be used as clock sources.
  • The maximum frequency of the STM32L562CET6P is 32 MHz, but it can be overclocked up to 64 MHz using the internal PLL (Phase-Locked Loop).
  • The STM32L562CET6P has several low-power modes, including Sleep, Stop, and Standby modes. These modes can be entered using the PWR (Power) register and the Cortex-M4 processor's sleep modes. The low-power modes can be used to reduce power consumption and extend battery life.
  • The STM32L562CET6P has 512 KB of Flash memory and 256 KB of SRAM (Static Random Access Memory).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32L562CET6P Overview

Use the download button to access the STM32L562CET6P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
