STM32MP153CAB3T - STMicroelectronics

Description: MPU with Arm Dual Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, TFT display, FD-CAN, Secure boot and Cryptography

Download STM32MP153CAB3T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP153CAB3T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

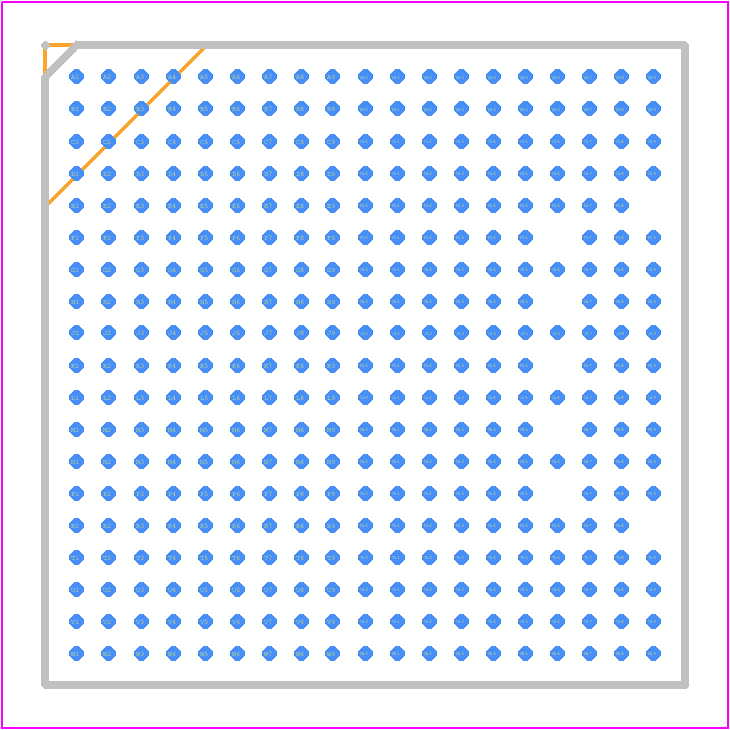

STM32MP153CAB3T - STMicroelectronics PCB footprint - BGA - BGA - LFBGA 354 16x16x1.7 P 0.8 mm
click to zoom
3D Models
STM32MP153CAB3T - STMicroelectronics - 3D model - BGA - LFBGA 354 16x16x1.7 P 0.8 mm
click to zoom

STM32MP153CAB3T Details

  • Manufacturer Part Number:

    STM32MP153CAB3T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFBGA-354

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B354

  • Length:

    16 mm

  • Number of Terminals:

    354

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA354,19X19,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.29 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.18 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

STM32MP153CAB3T Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the STM32MP153CAB3T is -40°C to 125°C, but it can be extended to -40°C to 150°C for some specific applications. However, it's essential to consult the datasheet and STMicroelectronics' documentation for specific temperature-related guidelines.
  • The clock tree configuration for the STM32MP153CAB3T involves setting up the clock sources, PLLs, and clock dividers. You can use the STM32CubeMX tool or consult the STM32MP1 reference manual (RM0090) for a detailed explanation of the clock tree configuration process.
  • The maximum frequency of the Cortex-A7 core in the STM32MP153CAB3T is 650 MHz, but it can be adjusted based on the application's requirements and power consumption constraints.
  • To optimize power consumption in the STM32MP153CAB3T, you can use various techniques such as clock gating, voltage scaling, and power domain management. Additionally, you can use the STM32 Power Consumption Analyzer (PCA) tool to analyze and optimize power consumption in your application.
  • The main difference between the STM32MP153CAB3T and the STM32MP153CAC3T is the package type. The STM32MP153CAB3T comes in a LFBGA448 package, while the STM32MP153CAC3T comes in a TFBGA448 package. Both devices have the same features and specifications, but the package type affects the pinout and PCB design.
