STM32MP153CAC3 - STMicroelectronics

Description: MPU with Arm Dual Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, TFT display, FD-CAN, Secure boot and Cryptography

Download STM32MP153CAC3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP153CAC3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

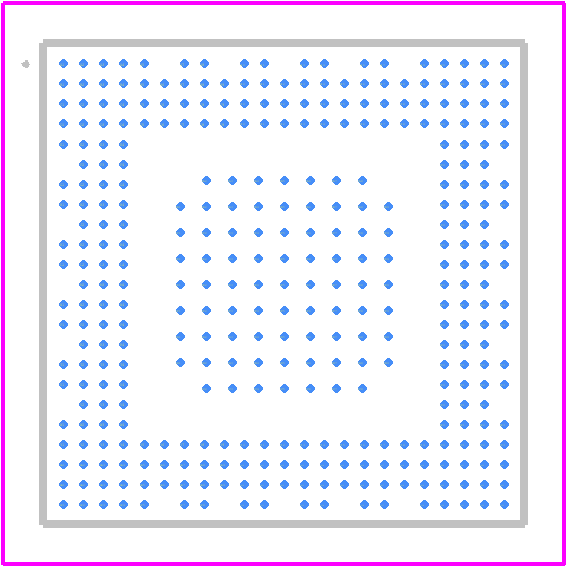

STM32MP153CAC3 - STMicroelectronics PCB footprint - Other - Other - STM32MP153CAC3-2
click to zoom
3D Models
STM32MP153CAC3 - STMicroelectronics - 3D model - Other - STM32MP153CAC3-2
click to zoom

STM32MP153CAC3 Details

  • Manufacturer Part Number:

    STM32MP153CAC3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-361

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B361

  • Length:

    12 mm

  • Number of Terminals:

    361

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA361,23X23,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.18 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

STM32MP153CAC3 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32MP153CAC3 is -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -40°C to 85°C for commercial applications and -40°C to 105°C for industrial applications.
  • The clock tree for the STM32MP153CAC3 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT allows you to select the clock sources, configure the clock dividers, and generate the clock tree configuration code for your application.
  • The maximum frequency for the Cortex-A7 core in the STM32MP153CAC3 is 650 MHz. However, the actual operating frequency may be lower depending on the specific use case and power consumption requirements.
  • To optimize power consumption for the STM32MP153CAC3, you can use the Power Consumption Optimization (PCO) tool provided by STMicroelectronics. The PCO tool allows you to analyze the power consumption of your application and provides recommendations for optimization. Additionally, you can use techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS) to reduce power consumption.
  • The STM32MP153CAC3 has a total of 1 GB of RAM, which includes 128 KB of Tightly-Coupled Memory (TCM) and 896 KB of System RAM.
