STM32MP153CAC3T - STMicroelectronics

Description: MPU with Arm Dual Cortex-A7 650 MHz, Arm Cortex-M4 real-time coprocessor, TFT display, FD-CAN, Secure boot and Cryptography

Download STM32MP153CAC3T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP153CAC3T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

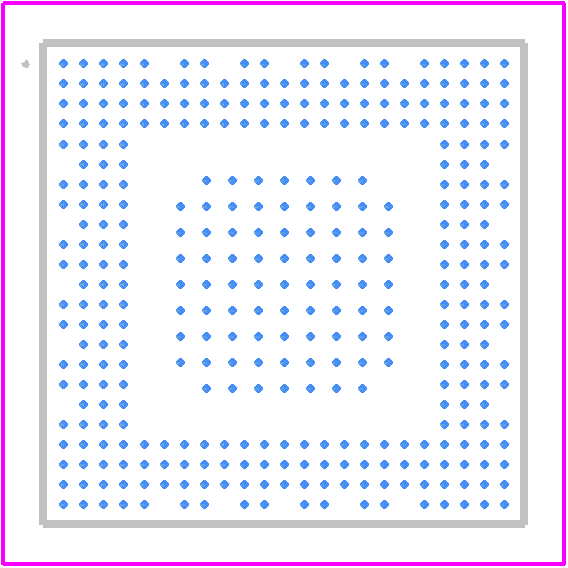

STM32MP153CAC3T - STMicroelectronics PCB footprint - Other - Other - STM32MP153CAC3T-2
click to zoom
3D Models
STM32MP153CAC3T - STMicroelectronics - 3D model - Other - STM32MP153CAC3T-2
click to zoom

STM32MP153CAC3T Details

  • Manufacturer Part Number:

    STM32MP153CAC3T

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-361

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B361

  • Length:

    12 mm

  • Number of Terminals:

    361

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA361,23X23,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.18 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

STM32MP153CAC3T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32MP153CAC3T is -40°C to 125°C (junction temperature). However, the recommended operating temperature range is -40°C to 85°C for commercial applications and -40°C to 105°C for industrial applications.
  • The clock tree for the STM32MP153CAC3T can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The CCT allows you to generate clock tree configurations based on your specific application requirements.
  • The maximum frequency for the Cortex-A7 core in the STM32MP153CAC3T is 650 MHz. However, the actual operating frequency may vary depending on the specific application and power consumption requirements.
  • Power consumption for the STM32MP153CAC3T can be optimized by using the Power Management Controller (PMC) to dynamically adjust the clock frequency and voltage based on the system's workload. Additionally, using low-power modes such as sleep and standby can also help reduce power consumption.
  • The STM32MP153CAC3T has a total of 1 GB of RAM, which includes 512 KB of TCM (Tightly-Coupled Memory) and 512 MB of DDR3L RAM.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP153CAC3T Overview

Use the download button to access the STM32MP153CAC3T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
