STM32MP153FAA1 - STMicroelectronics

Description: MPU with Arm Dual Cortex-A7 800 MHz, Arm Cortex-M4 real-time coprocessor, TFT display, FD-CAN, Secure boot and Cryptography

Download STM32MP153FAA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP153FAA1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

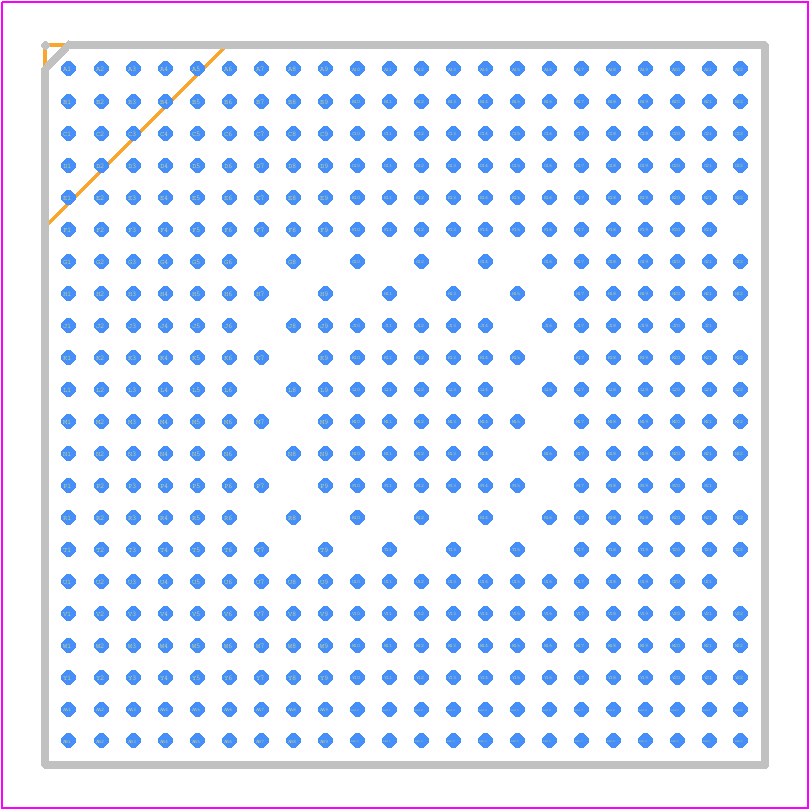

STM32MP153FAA1 - STMicroelectronics PCB footprint - BGA - BGA - LFBGA 448 18x18x1.7 P 0.8 mm-1
click to zoom
3D Models
STM32MP153FAA1 - STMicroelectronics - 3D model - BGA - LFBGA 448 18x18x1.7 P 0.8 mm-1
click to zoom

STM32MP153FAA1 Details

  • Manufacturer Part Number:

    STM32MP153FAA1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFBGA-448

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B448

  • Length:

    18 mm

  • Number of Terminals:

    448

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA448,22X22,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.32 mm

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.3 V

  • Supply Voltage-Nom:

    1.34 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    18 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

STM32MP153FAA1 Frequently Asked Questions (FAQs)

  • The STM32MP153FAA1 can operate from -40°C to 125°C (junction temperature), but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
  • The clock tree for the STM32MP153FAA1 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics, which generates the necessary code for the clock setup. Additionally, the STM32CubeMX tool can also be used to configure the clock tree.
  • The Cortex-A7 core can run up to 650 MHz, while the Cortex-M4 core can run up to 209 MHz.
  • The TrustZone security features on the STM32MP153FAA1 can be used by configuring the Secure and Non-Secure domains using the TrustZone Controller (TZC) and the Secure Monitor (SM) firmware. STMicroelectronics provides documentation and example code to help with the configuration and implementation of TrustZone security.
  • The STM32MP153FAA1 has up to 1 GB of DDR3L RAM and up to 128 MB of Flash memory, depending on the specific package and configuration.
