STM32MP153FAB1 - STMicroelectronics

Description: MPU with Arm Dual Cortex-A7 800 MHz, Arm Cortex-M4 real-time coprocessor, TFT display, FD-CAN, Secure boot and Cryptography

Download STM32MP153FAB1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP153FAB1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

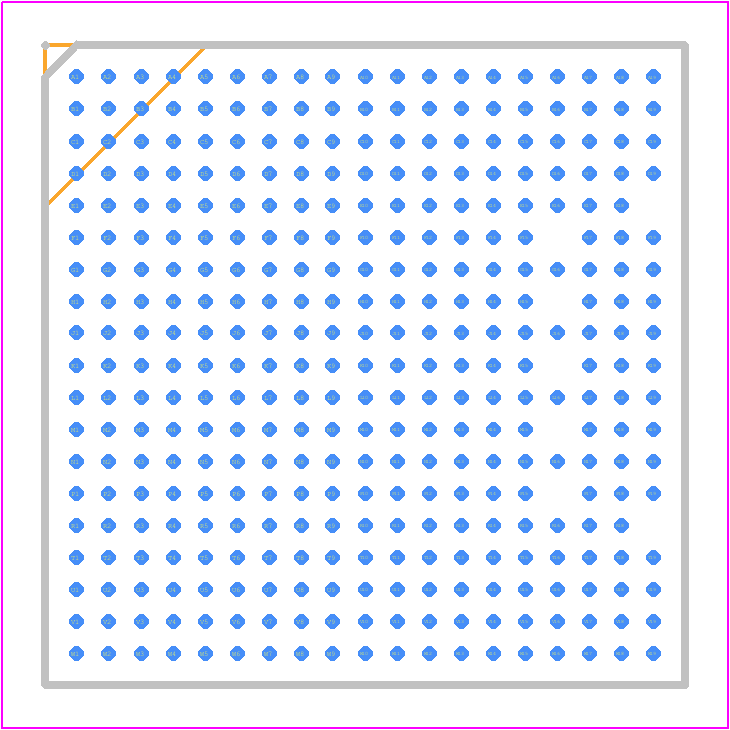

STM32MP153FAB1 - STMicroelectronics PCB footprint - BGA - BGA - LFBGA 354 16x16x1.7 P 0.8 mm
click to zoom
3D Models
STM32MP153FAB1 - STMicroelectronics - 3D model - BGA - LFBGA 354 16x16x1.7 P 0.8 mm
click to zoom

STM32MP153FAB1 Details

  • Manufacturer Part Number:

    STM32MP153FAB1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFBGA-354

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B354

  • Length:

    16 mm

  • Number of Terminals:

    354

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA354,19X19,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.29 mm

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.3 V

  • Supply Voltage-Nom:

    1.34 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

STM32MP153FAB1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for STM32MP153FAB1 is -40°C to 125°C (junction temperature). However, the commercial temperature range is 0°C to 85°C.
  • The clock tree configuration depends on the specific application and use case. Refer to the STM32MP1 clock tree documentation and the AN5031 application note for guidance on configuring the clock tree for optimal performance and power consumption.
  • The maximum frequency of the Cortex-A7 core is 650 MHz, and the maximum frequency of the Cortex-M4 core is 209 MHz.
  • The TrustZone security features can be used by implementing a secure boot mechanism, encrypting sensitive data, and using the Arm TrustZone-M security extensions. Refer to the STM32MP1 TrustZone documentation and the AN5171 application note for more information.
  • The STM32MP153FAB1 has up to 1 GB of DDR3L RAM and up to 128 GB of eMMC flash memory.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP153FAB1 Overview

Use the download button to access the STM32MP153FAB1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
