STM32MP153FAC1 - STMicroelectronics

Description: MPU with Arm Dual Cortex-A7 800 MHz, Arm Cortex-M4 real-time coprocessor, TFT display, FD-CAN, Secure boot and Cryptography

Download STM32MP153FAC1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STM32MP153FAC1 - STMicroelectronics - PCB symbol
click to zoom

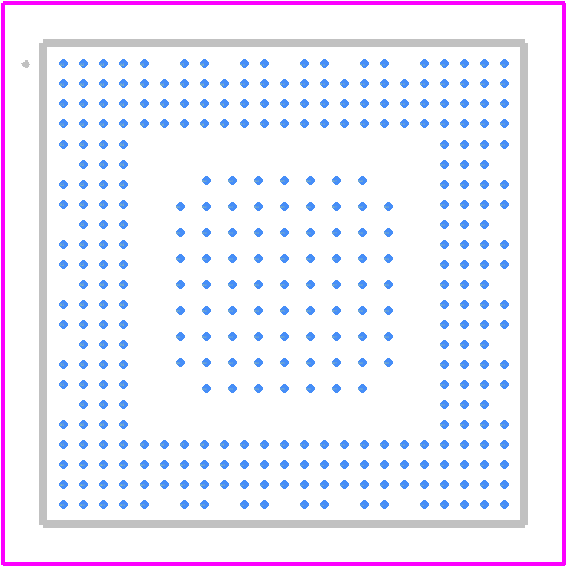

PCB Footprints
STM32MP153FAC1 - STMicroelectronics PCB footprint - Other - Other - STM32MP153FAC1-2
click to zoom
3D Models
STM32MP153FAC1 - STMicroelectronics - 3D model - Other - STM32MP153FAC1-2
click to zoom

STM32MP153FAC1 Details

  • Manufacturer Part Number:

    STM32MP153FAC1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-361

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-PBGA-B361

  • Length:

    12 mm

  • Number of Terminals:

    361

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA361,23X23,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.38 V

  • Supply Voltage-Min:

    1.3 V

  • Supply Voltage-Nom:

    1.34 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

STM32MP153FAC1 Frequently Asked Questions (FAQs)

  • The STM32MP153FAC1 can operate in a temperature range of -40°C to 125°C (junction temperature) and -40°C to 85°C (ambient temperature).
  • The clock tree for the STM32MP153FAC1 can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics. The tool allows you to generate clock configuration code for your specific application.
  • The Cortex-A7 core in the STM32MP153FAC1 can operate at a maximum frequency of 650 MHz.
  • The TrustZone security features in the STM32MP153FAC1 can be used by dividing the system into two worlds: the Secure World and the Non-Secure World. The Secure World is used for secure boot, secure firmware, and secure data storage, while the Non-Secure World is used for the operating system and applications. STMicroelectronics provides a TrustZone-enabled software development kit (SDK) to help developers implement TrustZone security in their applications.
  • The STM32MP153FAC1 has a maximum of 1 GB of DDR3L RAM and 128 MB of internal flash memory.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM32MP153FAC1 Overview

Use the download button to access the STM32MP153FAC1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
