STM32MP157AAA3 - STMicroelectronics

STM32MP157AAA3 Details

• Manufacturer Part Number:

  STM32MP157AAA3

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  South Korea

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Address Bus Width:

  26

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  64 MHz

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B448

• Length:

  18 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  48

• Number of Terminals:

  448

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

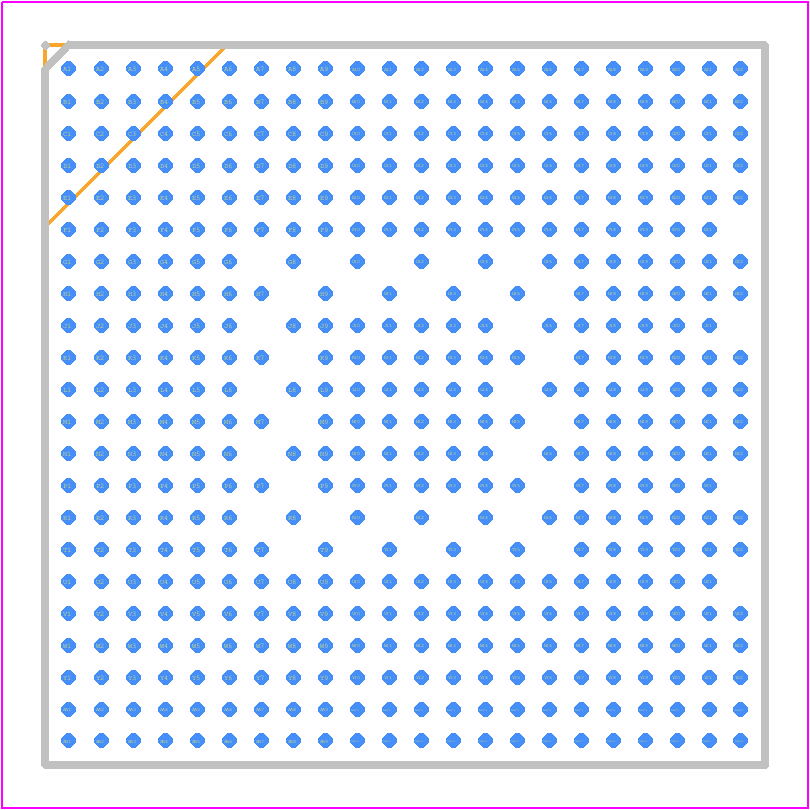

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA448,22X22,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• RAM (words):

  724992

• Seated Height-Max:

  1.32 mm

• Speed:

  650 MHz

• Supply Current-Max:

  1000 mA

• Supply Voltage-Max:

  1.25 V

• Supply Voltage-Min:

  0.85 V

• Supply Voltage-Nom:

  0.9 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  18 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
