STM32U535CEU6Q - STMicroelectronics

Description: Ultra-low-power with FlexPowerControl • 1.71 V to 3.6 V power supply • –40 °C to +85/125 °C temperature range • Low-power background-autonomous mode (LPBAM): autonomous peripherals with DMA, functional down to Stop 2 mode • VBAT mode: supply for RTC, 32 x 32-bit backup registers and 2-Kbyte backup SRAM • 90 nA Shutdown mode (23 wake-up pins) • 200 nA Standby mode (23 wake-up pins) • 370 nA Standby mode with RTC • 1.4 μA Stop 3 mode with 16-Kbyte SRAM • 2.2 µA Stop 3 mode with full SRAM • 3.0 µA

Download STM32U535CEU6Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

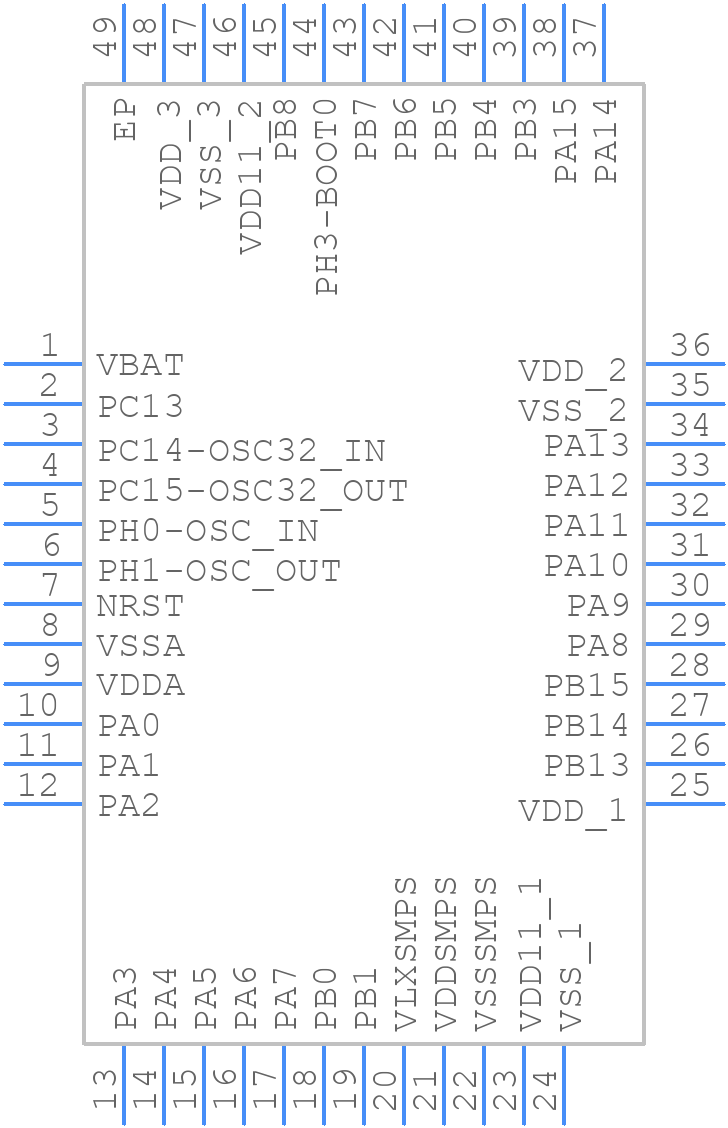

STM32U535CEU6Q - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32U535CEU6Q - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - . UFQFPN48 - 48-lead
click to zoom
3D Models
STM32U535CEU6Q - STMicroelectronics - 3D model - Quad Flat No-Lead - . UFQFPN48 - 48-lead
click to zoom

STM32U535CEU6Q Details

  • Manufacturer Part Number:

    STM32U535CEU6Q

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32U535CEU6Q Frequently Asked Questions (FAQs)

  • The STM32U535CEU6Q can operate from -40°C to 125°C (junction temperature), but the recommended operating temperature range is -40°C to 85°C for optimal performance and reliability.
  • The clock system on the STM32U535CEU6Q can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics, or by writing custom code using the STM32CubeMX software development tool.
  • The STM32U535CEU6Q's core frequency can reach up to 160 MHz, while the peripheral frequencies vary depending on the specific peripheral, but can reach up to 160 MHz for some peripherals like the USB OTG FS and the SDMMC interfaces.
  • The STM32U535CEU6Q has several power management features, including low-power modes (Sleep, Stop, and Standby), dynamic voltage and frequency scaling, and peripheral clock gating. These features can be configured using the STM32CubeMX software development tool or by writing custom code.
  • The STM32U535CEU6Q has 512 KB of Flash memory and 256 KB of SRAM, with an additional 64 KB of SRAM for the Arm Cortex-M4 core.
