STM32U545CEU6Q - STMicroelectronics

Description: Ultra-low-power Arm® Cortex®-M33 MCU+TrustZone®+FPU, 240 DMPIS, 512 KB flash memory, 274 KB SRAM, crypto

Download STM32U545CEU6Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

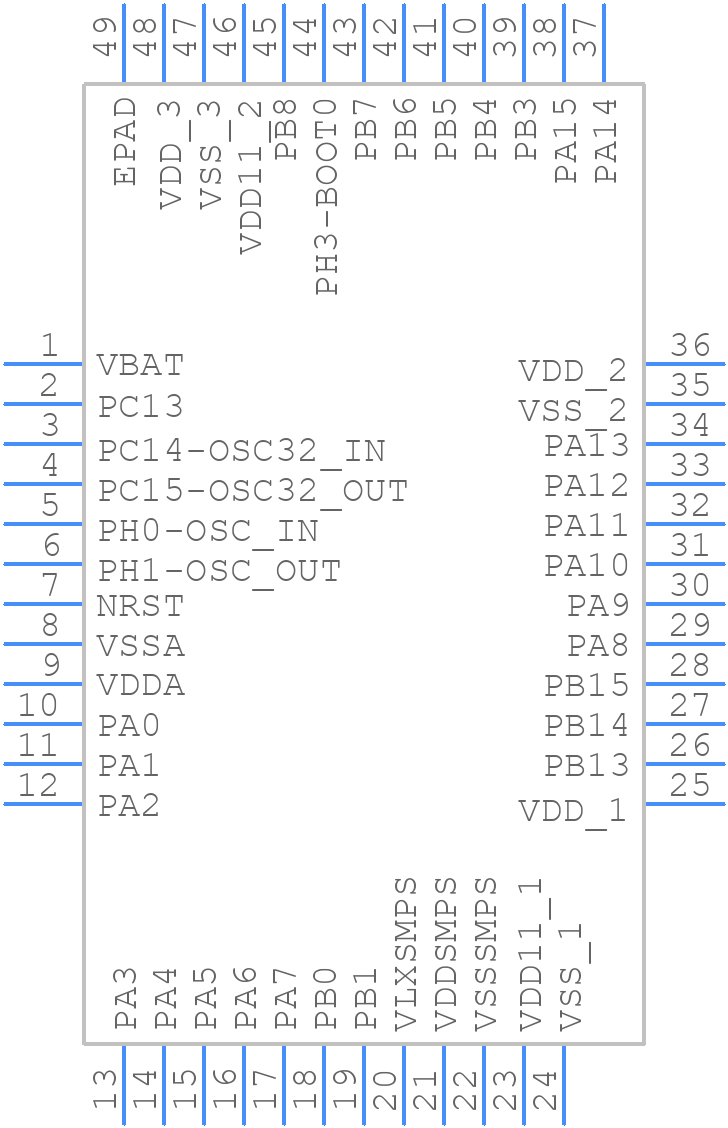

STM32U545CEU6Q - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32U545CEU6Q - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UFQFPN -48 PIN
click to zoom
3D Models
STM32U545CEU6Q - STMicroelectronics - 3D model - Quad Flat No-Lead - UFQFPN -48 PIN
click to zoom

STM32U545CEU6Q Details

  • Manufacturer Part Number:

    STM32U545CEU6Q

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM32U545CEU6Q Frequently Asked Questions (FAQs)

  • The STM32U545CEU6Q can operate from -40°C to 125°C (junction temperature), but the recommended operating temperature range is -40°C to 85°C for optimal performance and reliability.
  • The clock system on the STM32U545CEU6Q can be configured using the Clock Configuration Tool (CCT) provided by STMicroelectronics, or by writing custom code using the STM32CubeMX software development tool.
  • The STM32U545CEU6Q's core can run up to 160 MHz, while the peripherals can run up to 160 MHz (some peripherals may have lower maximum frequencies).
  • The STM32U545CEU6Q has several power-saving modes, including Sleep, Stop, and Standby modes. These modes can be configured using the STM32CubeMX software development tool or by writing custom code using the STM32 HAL library.
  • The STM32U545CEU6Q has 512 KB of Flash memory and 256 KB of SRAM, with an additional 64 KB of SRAM for the Arm Cortex-M4 core.
