STM32W108CZU74TR - STMicroelectronics

Description: IC RF TXRX+MCU 802.15.4 48-UFQFN

Download STM32W108CZU74TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

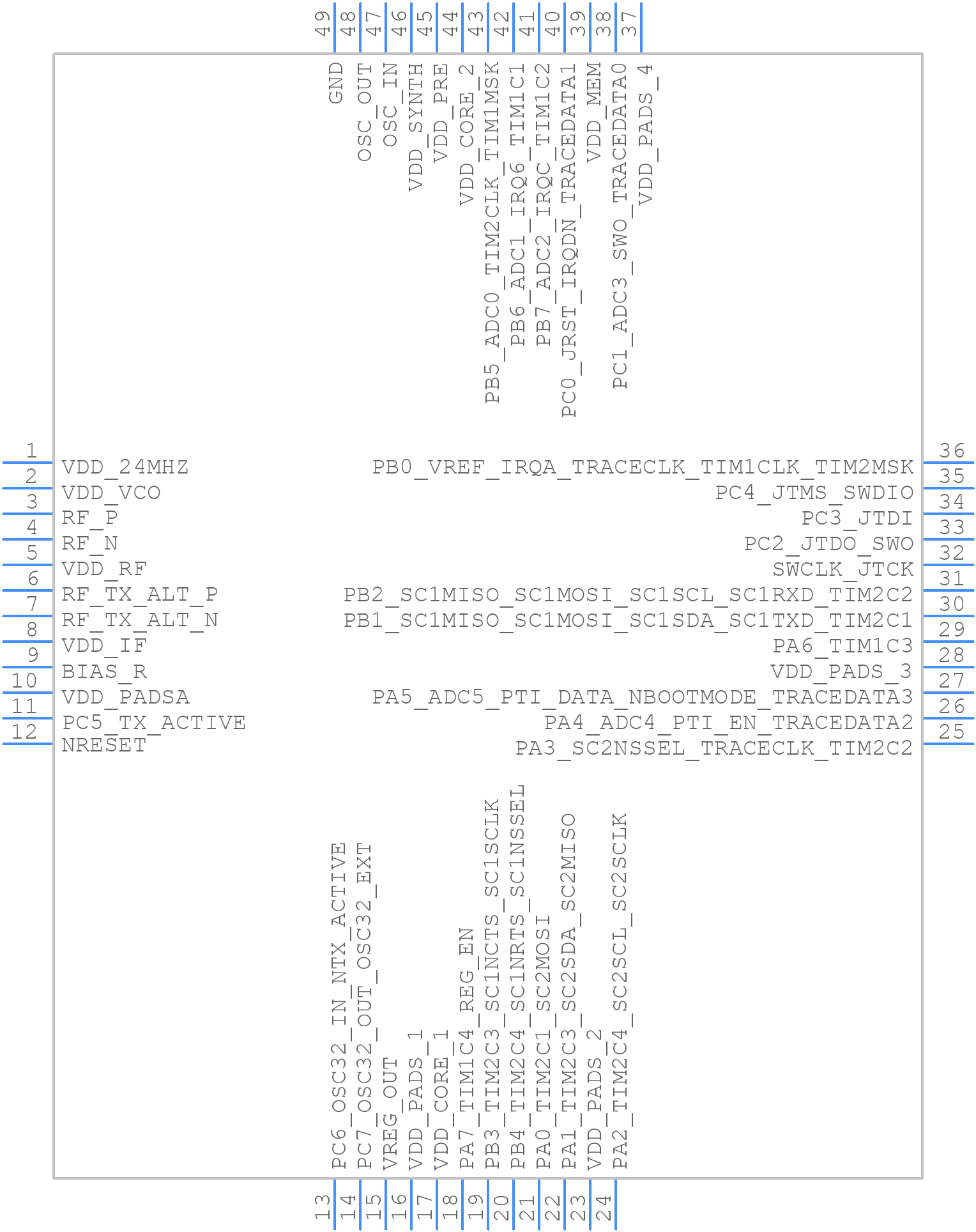

STM32W108CZU74TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32W108CZU74TR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - FQFPN48 - 48-lead, 7 x 7 mm, 0.5 mm pitch,
click to zoom
3D Models
STM32W108CZU74TR - STMicroelectronics - 3D model - Quad Flat No-Lead - FQFPN48 - 48-lead, 7 x 7 mm, 0.5 mm pitch,
click to zoom

STM32W108CZU74TR Details

  • Manufacturer Part Number:

    STM32W108CZU74TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M3

  • JESD-30 Code:

    S-PQCC-N48

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    12288

  • ROM (words):

    49152

  • ROM Programmability:

    FLASH

  • Speed:

    24 MHz

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

STM32W108CZU74TR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the STM32W108CZU74TR is -40°C to 85°C.
  • The clock speed of the STM32W108CZU74TR can be configured using the Clock Control Register (RCC) and the Power Control Register (PWR). You can also use the STM32CubeMX software to generate the clock configuration code.
  • The maximum current consumption of the STM32W108CZU74TR depends on the operating mode and frequency. According to the datasheet, the maximum current consumption is around 350 mA at 32 MHz with all peripherals enabled.
  • The STM32W108CZU74TR can be programmed using a variety of tools, including the ST-Link/V2 debugger, the STM32CubeProgrammer software, and third-party IDEs such as Keil µVision and IAR Embedded Workbench.
  • The main difference between the STM32W108CZU74TR and the STM32W108RB is the package type and pin count. The STM32W108CZU74TR is a 144-pin LQFP package, while the STM32W108RB is a 64-pin LQFP package. The STM32W108CZU74TR has more peripherals and features than the STM32W108RB.
