STM32WB35CEU6ATR - STMicroelectronics

Description: ARM Microcontrollers - MCU Ultra-low-power dualcore ArmCortex-M4 64MHz M0+ 32MHz 512 Kbytes BLE 5.2 Zigbee

Download STM32WB35CEU6ATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

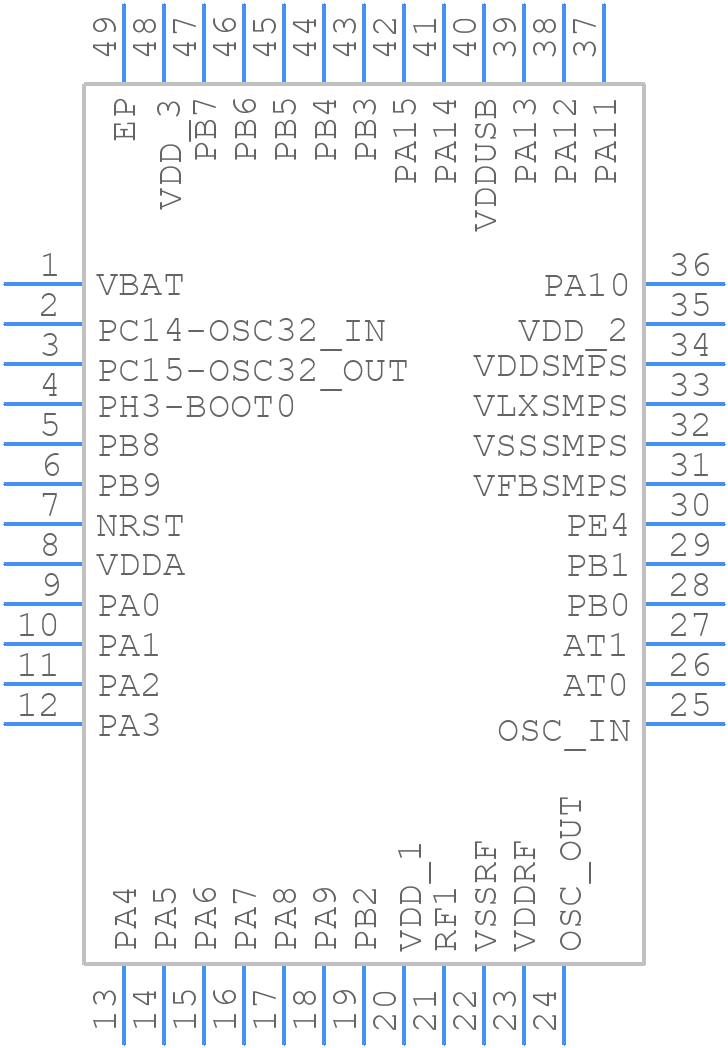

STM32WB35CEU6ATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32WB35CEU6ATR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - FQFPN48 - 48-lead, 7 x 7
click to zoom
3D Models
STM32WB35CEU6ATR - STMicroelectronics - 3D model - Quad Flat No-Lead - FQFPN48 - 48-lead, 7 x 7
click to zoom

STM32WB35CEU6ATR Details

  • Manufacturer Part Number:

    STM32WB35CEU6ATR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Date Of Intro:

    2020-07-02

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

STM32WB35CEU6ATR Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the STM32WB35CEU6ATR is 32 kHz, but it can also work with 16 MHz or 24 MHz crystals with some configuration adjustments.
  • To configure the STM32WB35CEU6ATR for BLE operation, you need to enable the BLE peripheral, configure the BLE clock, and set up the BLE protocol stack using the STM32CubeWB firmware package.
  • The maximum transmit power of the STM32WB35CEU6ATR's radio is +5 dBm, but it can be adjusted to lower values depending on the application requirements.
  • Yes, the STM32WB35CEU6ATR can be used with an external antenna, but it requires a matching network to ensure optimal performance and compliance with regulatory requirements.
  • To implement secure boot on the STM32WB35CEU6ATR, you need to use the STM32CubeWB firmware package and follow the secure boot guidelines provided by STMicroelectronics, which involve generating and storing cryptographic keys, and configuring the boot process to verify the authenticity of the firmware.
