STM32WB50CGU5 - STMicroelectronics

Description: Multiprotocol wireless 32-bit MCU Arm®-based Cortex®-M4 with FPU, Bluetooth® 5.4 or 802.15.4 radio solution

Download STM32WB50CGU5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

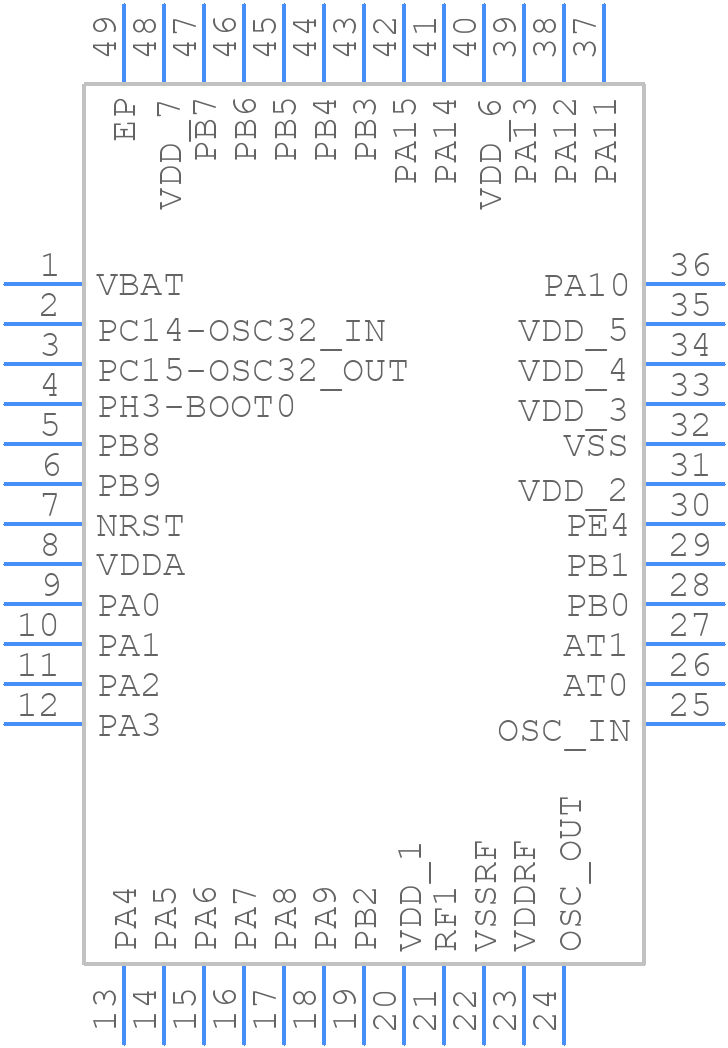

STM32WB50CGU5 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM32WB50CGU5 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ufqfpn49
click to zoom
3D Models
STM32WB50CGU5 - STMicroelectronics - 3D model - Quad Flat No-Lead - ufqfpn49
click to zoom

STM32WB50CGU5 Details

  • Manufacturer Part Number:

    STM32WB50CGU5

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Length:

    7 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

STM32WB50CGU5 Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the STM32WB50CGU5 is 64 MHz.
  • To configure the STM32WB50CGU5 for low power consumption, use the STOP or STANDBY low-power modes, and consider using the voltage regulator's low-power mode. Additionally, optimize your code to minimize power consumption by using sleep modes, reducing clock frequencies, and disabling peripherals when not in use.
  • Yes, the STM32WB50CGU5 is a dual-core microcontroller that integrates a BLE 5.0 radio, making it suitable for BLE applications. It also has a dedicated BLE stack and a set of APIs to simplify BLE development.
  • The STM32WB50CGU5 has a built-in secure boot mechanism that ensures the authenticity and integrity of the firmware. To implement secure boot and secure firmware updates, use the STM32WB50CGU5's cryptographic accelerators, such as the AES and SHA accelerators, and follow the guidelines provided in the STM32WB50CGU5's security application note.
  • The STM32WB50CGU5 has 1 MB of Flash memory and 256 KB of RAM.
