STM6600AS24DM6F - STMicroelectronics

Description: Smart push-button on/off controller with Smart Reset™ and power-on lockout

Download STM6600AS24DM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

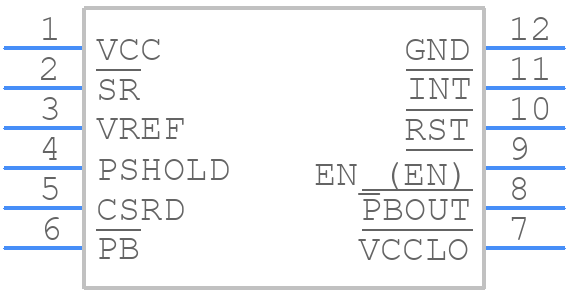

STM6600AS24DM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM6600AS24DM6F - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - TDFN12 (2 x 3 mm)
click to zoom
3D Models
STM6600AS24DM6F - STMicroelectronics - 3D model - Small Outline No-lead - TDFN12 (2 x 3 mm)
click to zoom

STM6600AS24DM6F Details

  • Manufacturer Part Number:

    STM6600AS24DM6F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Pin Count:

    12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC12,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.008 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

STM6600AS24DM6F Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal gradients. Also, consider using a thermal interface material to improve heat transfer.
  • Not using the recommended bypass capacitors can lead to instability, noise, and reduced performance. It is essential to use the recommended capacitors to ensure stable operation and minimize electromagnetic interference (EMI).
  • Check the power supply voltage, ensure that the POR pin is properly connected, and verify that the reset signal is not being held low by an external circuit. Also, check for any noise or glitches on the power supply lines.
  • Ensure that the device is operated within the recommended specifications, and that the system is designed with redundancy and fail-safes to mitigate potential failures. Also, consider using a device with a higher temperature rating and a more robust package.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM6600AS24DM6F Overview

Use the download button to access the STM6600AS24DM6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM66, or try a keyword search, such as Power Management Circuits
