STM6601AU2DDM6F - STMicroelectronics

Description: Smart push-button on/off controller with Smart Reset™ and power-on lockout

Download STM6601AU2DDM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

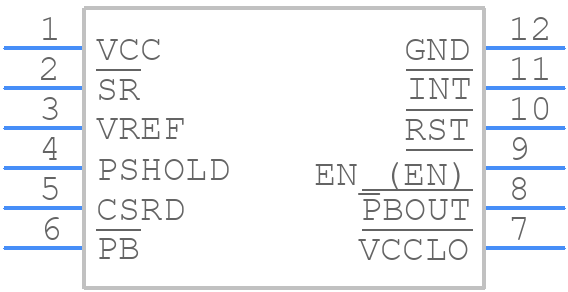

STM6601AU2DDM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM6601AU2DDM6F - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - STM6601CM2DDM6F-1
click to zoom
3D Models
STM6601AU2DDM6F - STMicroelectronics - 3D model - Small Outline No-lead - STM6601CM2DDM6F-1
click to zoom

STM6601AU2DDM6F Details

  • Manufacturer Part Number:

    STM6601AU2DDM6F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Pin Count:

    12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC12,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.008 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

STM6601AU2DDM6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in their application note AN5096, which includes guidelines for thermal pad connection, copper pour, and via placement to ensure optimal thermal performance.
  • The STM6601AU2DDM6F has a built-in overcurrent protection feature. To implement it, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. The device will automatically shut down when the current exceeds the set threshold.
  • STMicroelectronics recommends using a ceramic capacitor with a value between 4.7uF to 10uF, and an X7R or X5R dielectric, placed as close as possible to the VIN pin to ensure stable operation and minimize noise.
  • Yes, the STM6601AU2DDM6F is rated for operation up to 150°C. However, it's essential to ensure proper thermal management, such as using a heat sink or thermal interface material, to prevent overheating and maintain reliability.
  • The output voltage of the STM6601AU2DDM6F can be adjusted by connecting a resistor divider network between the VOUT pin and the GND pin. The ratio of the resistors determines the output voltage, which can be calculated using the formula provided in the datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM6601AU2DDM6F Overview

Use the download button to access the STM6601AU2DDM6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM66, or try a keyword search, such as Power Management Circuits
