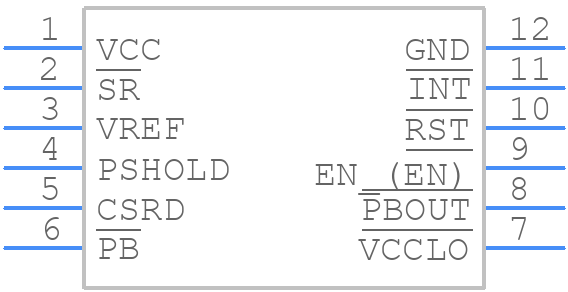

STM6601BM2DDM6F - STMicroelectronics

STM6601BM2DDM6F Details

• Manufacturer Part Number:

  STM6601BM2DDM6F

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFN

• Pin Count:

  12

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  24 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Adjustable Threshold:

  NO

• Analog IC - Other Type:

  VOLTAGE SUPERVISOR/RESET IC

• JESD-30 Code:

  R-PDSO-N12

• JESD-609 Code:

  e4

• Length:

  3 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSON

• Package Equivalence Code:

  SOLCC12,.08,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  0.008 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.6 V

• Supply Voltage-Nom (Vsup):

  2 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Threshold Voltage-Nom:

  +3.1V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2 mm
