STM6601BS2BDM6F - STMicroelectronics

Description: Smart push-button on/off controller with Smart Reset™ and power-on lockout

Download STM6601BS2BDM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

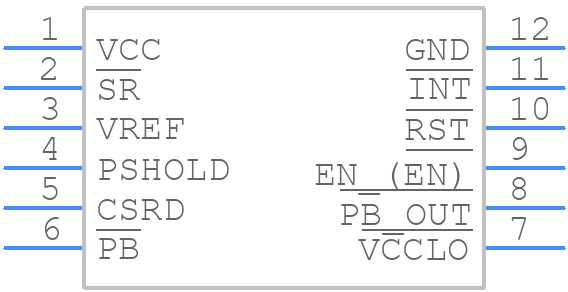

Symbol
STM6601BS2BDM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM6601BS2BDM6F - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - TDFN12
click to zoom
3D Models
STM6601BS2BDM6F - STMicroelectronics - 3D model - Small Outline No-lead - TDFN12
click to zoom

STM6601BS2BDM6F Details

  • Manufacturer Part Number:

    STM6601BS2BDM6F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Pin Count:

    12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC12,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.008 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

STM6601BS2BDM6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM6601BS2BDM6F in the application note AN5076, which includes guidelines for thermal pad connection, copper pouring, and via placement to ensure optimal thermal performance.
  • To ensure reliable operation at high temperatures, it is essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal interface materials, such as thermal pads or thermal grease, to improve heat dissipation.
  • The maximum allowed voltage on the input pins of the STM6601BS2BDM6F is the voltage rating of the device, which is 5.5V. Exceeding this voltage can cause damage to the device. It is recommended to use voltage limiting resistors or clamping diodes to protect the input pins from overvoltage conditions.
  • To troubleshoot issues with the STM6601BS2BDM6F not turning on, check the power supply voltage, ensure that the enable pin (EN) is properly biased, and verify that the input voltage is within the recommended operating range. Also, check for any short circuits or open circuits on the PCB.
  • STMicroelectronics recommends using ESD protection devices, such as TVS diodes or ESD arrays, to protect the STM6601BS2BDM6F from electrostatic discharge. The recommended ESD protection devices are listed in the datasheet or in the application note AN4073.
