STM6601CQ2BDM6F - STMicroelectronics

Description: Smart push-button on/off controller with Smart Reset™ and power-on lockout

Download STM6601CQ2BDM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

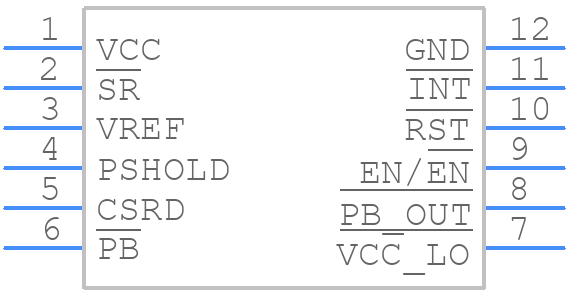

STM6601CQ2BDM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM6601CQ2BDM6F - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - TDFN12
click to zoom
3D Models
STM6601CQ2BDM6F - STMicroelectronics - 3D model - Small Outline No-lead - TDFN12
click to zoom

STM6601CQ2BDM6F Details

  • Manufacturer Part Number:

    STM6601CQ2BDM6F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Pin Count:

    12

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC12,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.008 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

STM6601CQ2BDM6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5076, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to ensure optimal thermal performance.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, to reduce the device temperature.
  • The STM6601CQ2BDM6F has built-in ESD protection on all pins, with a human body model (HBM) rating of 2 kV and a charged device model (CDM) rating of 500 V. To prevent latch-up, ensure that the device is powered up and down slowly, and avoid voltage spikes or transients on the power supply lines.
  • Yes, the STM6601CQ2BDM6F is qualified for automotive and high-reliability applications, with a PPAP (Production Part Approval Process) level 3 rating. However, it's essential to follow the recommended operating conditions, and ensure that the device is used within its specified temperature range and power supply voltage.
  • To troubleshoot issues with the STM6601CQ2BDM6F, start by reviewing the device's datasheet and application notes. Check the power supply voltage, clock frequency, and input/output signals for any anomalies. Use oscilloscopes or logic analyzers to capture waveforms and debug the issue. If the problem persists, contact STMicroelectronics' technical support for further assistance.
