STM6904SFEDS6F - STMicroelectronics

Description: Quad, ultralow voltage supervisor with push-button reset

Download STM6904SFEDS6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

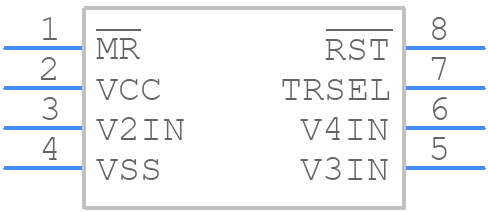

Symbol
STM6904SFEDS6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM6904SFEDS6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - STM6904SFEDS6F
click to zoom
3D Models
STM6904SFEDS6F - STMicroelectronics - 3D model - Small Outline Packages - STM6904SFEDS6F
click to zoom

STM6904SFEDS6F Details

  • Manufacturer Part Number:

    STM6904SFEDS6F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3 X 3 MM, GREEN, TSSOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.014 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

STM6904SFEDS6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4171, which includes guidelines for thermal pad connection, copper pour, and via placement to ensure optimal thermal performance.
  • The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 10uF to 22uF. Refer to the application note AN4171 for more detailed guidance.
  • The maximum allowed voltage on the EN (enable) pin is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a buffer circuit to ensure the EN pin voltage remains within the specified range.
  • The STM6904SFEDS6F is rated for operation up to 150°C (junction temperature). However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended thermal design guidelines and consider derating the device's performance at elevated temperatures.
  • Start by verifying the input voltage, output voltage, and output current. Check the PCB layout for any thermal or electrical issues. Use an oscilloscope to monitor the switching node and output voltage. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
