STM6905SFEDS6F - STMicroelectronics

Description: Quintuple, ultralow voltage supervisor with push-button reset

Download STM6905SFEDS6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

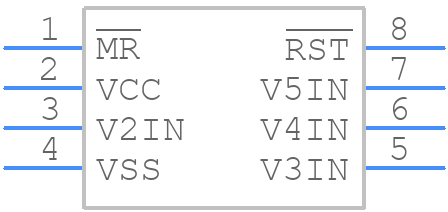

Symbol
STM6905SFEDS6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM6905SFEDS6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - MiniSO-8(H=1.1mm)
click to zoom
3D Models
STM6905SFEDS6F - STMicroelectronics - 3D model - Small Outline Packages - MiniSO-8(H=1.1mm)
click to zoom

STM6905SFEDS6F Details

  • Manufacturer Part Number:

    STM6905SFEDS6F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.016 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.955,1.05V

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

STM6905SFEDS6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM6905SFEDS6F in the application note AN4923, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it is essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal interface materials, such as thermal pads or thermal grease, to improve heat transfer between the device and the heat sink.
  • The high current rating of the STM6905SFEDS6F requires careful consideration of PCB trace widths, copper thickness, and via sizes to ensure that the PCB can handle the high current densities. It is recommended to use thick copper traces (e.g., 2 oz or 3 oz) and to follow the IPC-2152 standard for current-carrying capacity of printed circuit boards.
  • The selection of external components, such as capacitors, resistors, and inductors, depends on the specific application and operating conditions. STMicroelectronics provides guidance on component selection in the datasheet and application notes, and it is recommended to consult with experienced engineers or use simulation tools to ensure that the selected components meet the requirements of the design.
  • The STM6905SFEDS6F is a high-frequency device that requires careful consideration of EMI and EMC. It is recommended to follow the guidelines in the application note AN2679 for EMI filtering and shielding, and to consult with experienced engineers or use simulation tools to ensure that the design meets the relevant EMI and EMC standards.
