STM690AM6F - STMicroelectronics

Description: Supervisor Push-Pull, Totem Pole 1 Channel, 5V, 8-SOIC, -40°C ~ 85°C

Download STM690AM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

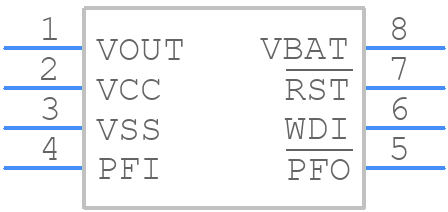

Symbol
STM690AM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM690AM6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO--150 mils body width,
click to zoom
3D Models
STM690AM6F - STMicroelectronics - 3D model - Small Outline Packages - SO--150 mils body width,
click to zoom

STM690AM6F Details

  • Manufacturer Part Number:

    STM690AM6F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    RESET THRESHOLD VOLTGE IS 4.65V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.65V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM690AM6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM690AM6F in the application note AN4416, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to minimize thermal resistance.
  • To ensure reliable operation at high temperatures, it is essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal interface materials, such as thermal grease or thermal tape, to improve heat transfer between the device and the heat sink.
  • The maximum allowed voltage on the input pins of the STM690AM6F is the voltage rating of the device, which is 6.5V. Exceeding this voltage can cause permanent damage to the device.
  • To prevent electrostatic discharge (ESD) damage, handle the STM690AM6F with ESD-protected equipment, wear an ESD strap, and follow proper assembly and handling procedures. Additionally, consider using ESD protection devices, such as TVS diodes, on the input pins.
  • STMicroelectronics recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. It is essential to follow the recommended soldering profile to prevent damage to the device.
