STM690SM6E - STMicroelectronics

Description: 3 V supervisor with battery switchover

Download STM690SM6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

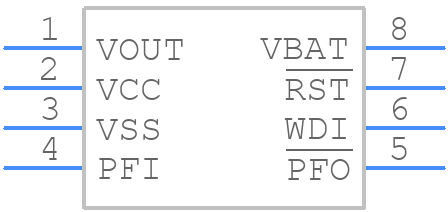

STM690SM6E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM690SM6E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_2026
click to zoom
3D Models
STM690SM6E - STMicroelectronics - 3D model - Small Outline Packages - SO-8_2026
click to zoom

STM690SM6E Details

  • Manufacturer Part Number:

    STM690SM6E

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    BAT BUP SW:Y;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.925V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM690SM6E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM690SM6E in the application note AN5076, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable startup and shutdown, it's essential to follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, ensure that the input voltage ramps up and down slowly (typically 10-20 ms) to prevent damage to the device.
  • The internal oscillator has a limited frequency range and accuracy. If your application requires a higher frequency or tighter frequency tolerance, it's recommended to use an external clock source. Additionally, if you need to synchronize multiple devices, an external clock source is preferred.
  • The STM690SM6E has a built-in brownout detection (BOD) circuit that can be enabled or disabled through software. When enabled, the BOD will reset the device if the input voltage falls below a certain threshold. It's essential to configure the BOD correctly to ensure reliable operation and prevent unwanted resets.
  • To ensure EMI and EMC compliance, follow the guidelines outlined in the application note AN2866, which provides recommendations for PCB layout, component selection, and shielding. Additionally, consider using a shielded enclosure and ensuring that all cables and connectors are properly filtered and terminated.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM690SM6E Overview

Use the download button to access the STM690SM6E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM69, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
