STM692AM6F - STMicroelectronics

Description: 5 V supervisor with battery switchover

Download STM692AM6F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

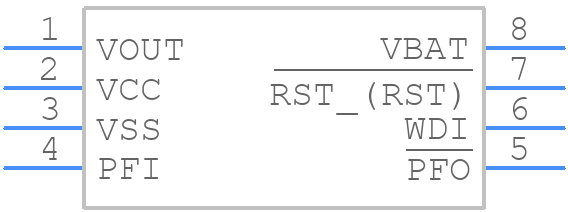

STM692AM6F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM692AM6F - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO--150 mils body width,
click to zoom
3D Models
STM692AM6F - STMicroelectronics - 3D model - Small Outline Packages - SO--150 mils body width,
click to zoom

STM692AM6F Details

  • Manufacturer Part Number:

    STM692AM6F

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    RESET THRESHOLD VOLTGE IS 4.4V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.4V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM692AM6F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM692AM6F in the application note AN5076, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal interface materials, such as thermal pads or thermal grease, to improve heat transfer between the device and the heat sink.
  • The STM692AM6F's high current consumption requires a robust power supply design to ensure stable operation. Consider using a high-current, low-dropout regulator (LDO) or a switching regulator with a high current rating to minimize voltage drops and ensure sufficient headroom for the device's operating voltage.
  • To optimize the STM692AM6F's performance for low-power applications, consider using the device's power-saving modes, such as the low-power mode or the shutdown mode. Additionally, optimize the clock frequency, reduce the voltage supply, and minimize the number of active circuits to reduce power consumption.
  • The STM692AM6F is a high-frequency device that can generate electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, follow proper PCB layout and design guidelines, use shielding and filtering techniques, and ensure that the device is properly grounded and decoupled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM692AM6F Overview

Use the download button to access the STM692AM6F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM69, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
