- Part Number STM708TDS6F
- Manufacturer STMicroelectronics
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - TSSOP8_2022
- Released Date Sep 11, 2022
- Last Modified Date Jan 8, 2026 2:31 PM UTC
- Pinout / Pin List Click Here (Member Only)
STM708TDS6F Details
-
Manufacturer Part Number:
STM708TDS6F
-
Brand Name:
STMicroelectronics
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
SOIC
-
Package Description:
3 X 3 MM, ROHS COMPLIANT, TSSOP-8
-
Pin Count:
8
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
24 Weeks
-
Manufacturer:
STMicroelectronics
STM708TDS6F Frequently Asked Questions (FAQs)
-
STMicroelectronics provides a recommended PCB layout in the application note AN5096, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
-
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal interface materials, such as thermal pads or thermal grease, to improve heat transfer between the device and the heat sink.
-
The maximum allowed voltage on the input pins is specified in the datasheet as Vin(max), which is typically 5.5V. However, it's essential to consider the voltage tolerance and transient voltage suppression to prevent damage from voltage spikes or electrostatic discharge.
-
To handle ESD protection, follow proper handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, consider implementing ESD protection circuits, such as TVS diodes or ESD protection arrays, on the PCB to protect the device from electrostatic discharge.
-
The recommended decoupling capacitors for the STM708TDS6F are typically 100nF to 1uF ceramic capacitors, placed as close as possible to the device's power pins. The exact value and type of capacitor may vary depending on the specific application and operating frequency.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
STM708TDS6F Overview

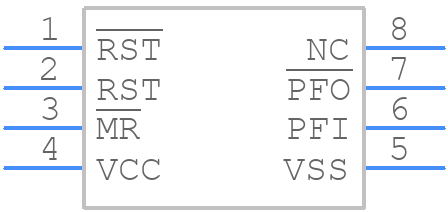

Use the download button to access the STM708TDS6F schematic symbol, PCB footprint, and 3D model.
