STM806TM6E - STMicroelectronics

Description: 3 V supervisor with battery switchover

Download STM806TM6E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

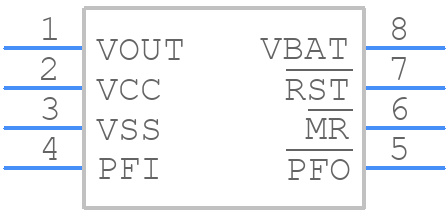

STM806TM6E - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM806TM6E - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - -SO-8 mechanical data--
click to zoom
3D Models
STM806TM6E - STMicroelectronics - 3D model - Small Outline Packages - -SO-8 mechanical data--
click to zoom

STM806TM6E Details

  • Manufacturer Part Number:

    STM806TM6E

  • Brand Name:

    STMicroelectronics

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    BAT BUP SW:Y;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:Y;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.1 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.075V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.9 mm

STM806TM6E Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout for the STM806TM6E in the application note AN5076, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The STM806TM6E has a built-in overcurrent protection feature that can be enabled by setting the OCP pin high. Additionally, external overcurrent protection circuits can be implemented using sense resistors and comparators to detect overcurrent conditions and shut down the device if necessary.
  • While the datasheet specifies a maximum recommended operating voltage of 5.5V for the VCC pin, the absolute maximum rating is 6.5V. However, it's essential to ensure that the voltage on the VCC pin does not exceed 5.5V during normal operation to prevent damage to the device.
  • The STM806TM6E has several low-power modes that can be configured by setting the appropriate bits in the control registers. For example, the device can be put into standby mode by setting the STBY bit in the control register 1. Additionally, the clock frequency can be reduced or the device can be put into sleep mode to further reduce power consumption.
  • STMicroelectronics recommends using ESD protection devices such as TVS diodes or ESD arrays on the I/O pins of the STM806TM6E to protect against electrostatic discharge. The recommended ESD protection devices are specified in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM806TM6E Overview

Use the download button to access the STM806TM6E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM80, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
