STM8AF6226UCY - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 8-Kbyte Flash memory, data EEPROM, 10-bit ADC, timers, LIN, SPI, I²C, 3 to 5.5 V

Download STM8AF6226UCY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

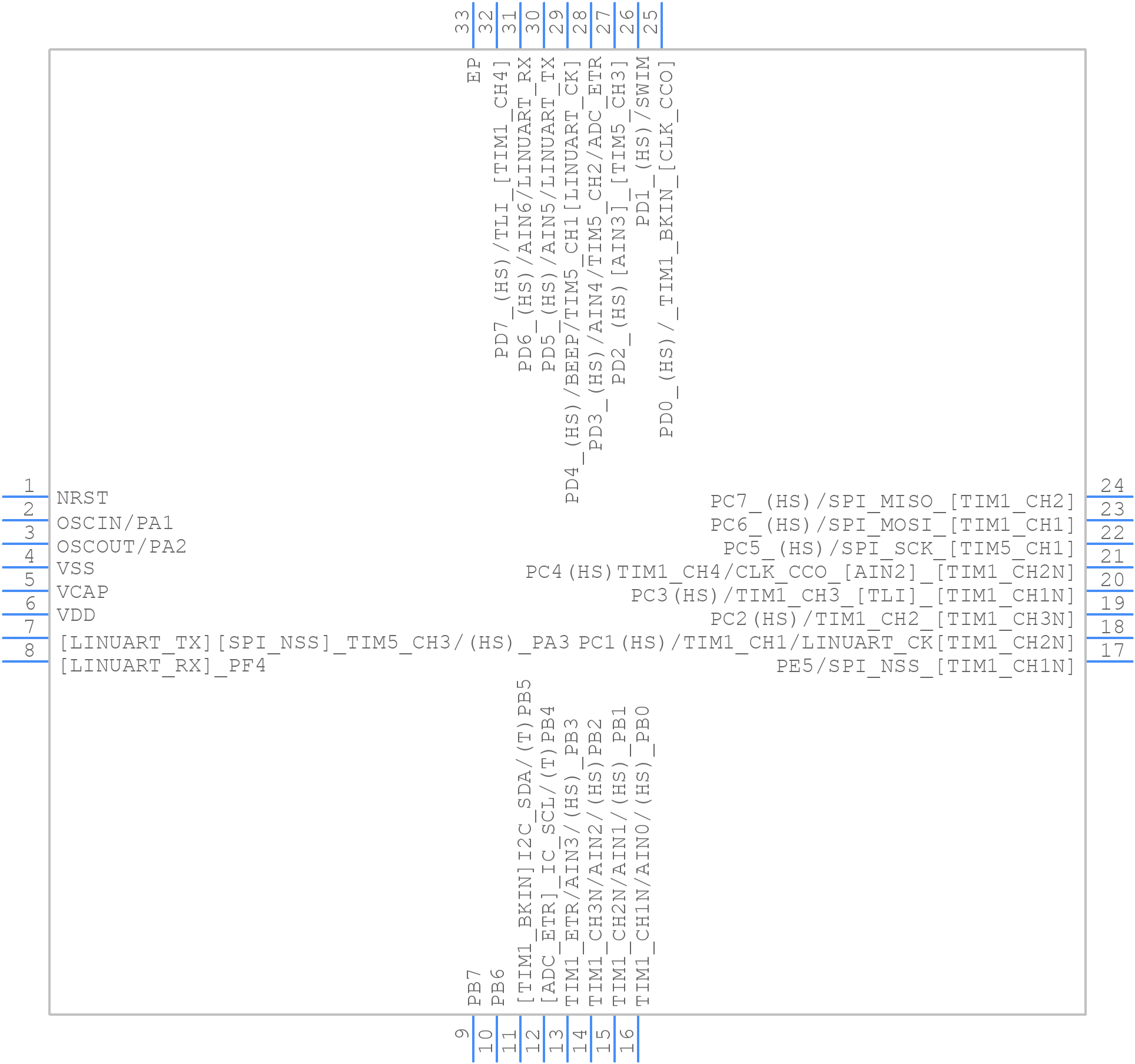

STM8AF6226UCY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6226UCY - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN32 is a 32-lead, 5 × 5 mm, 0.5 mm pitch
click to zoom
3D Models
STM8AF6226UCY - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN32 is a 32-lead, 5 × 5 mm, 0.5 mm pitch
click to zoom

STM8AF6226UCY Details

  • Manufacturer Part Number:

    STM8AF6226UCY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    VFQFPN-32

  • Manufacturer Package Code:

    VFQFPN 32 5x5x1.0

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    STM8A

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    28

  • Number of I/O Lines:

    28

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    32

  • Number of Timers:

    4

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    1024

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    4.75 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM8AF6226UCY Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the STM8AF6226UCY is 24 MHz, but it can be overclocked up to 32 MHz with some limitations. However, it's recommended to follow the clock frequency specified in the datasheet to ensure reliable operation.
  • The STM8AF6226UCY has a built-in bootloader that can be configured using the STMicroelectronics-provided software tools, such as the STM8CubeMX or the STM8AF62xx Firmware Library. The bootloader can be configured to use various communication interfaces, such as UART, SPI, or I2C, and can be customized to meet specific application requirements.
  • The minimum voltage required for the STM8AF6226UCY to operate is 2.95V, but it's recommended to use a voltage regulator to ensure a stable 3.3V supply to the microcontroller. Operating the device below the recommended voltage may affect its performance and reliability.
  • No, the STM8AF6226UCY is not 5V tolerant, and operating it with a 5V power supply can damage the device. The recommended power supply voltage is 3.3V, and it's essential to use a voltage regulator or a level shifter to ensure the correct voltage is applied to the microcontroller.
  • The STM8AF6226UCY has a built-in watchdog timer that can be enabled and configured using the WWDG (Window Watchdog) peripheral. The watchdog timer can be set to reset the microcontroller if it doesn't receive a refresh signal within a specified time window, which helps to prevent the device from getting stuck in an infinite loop or a deadlock situation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM8AF6226UCY Overview

Use the download button to access the STM8AF6226UCY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM8A, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
