STM8AF6266ITCX - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 32 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 V

Download STM8AF6266ITCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

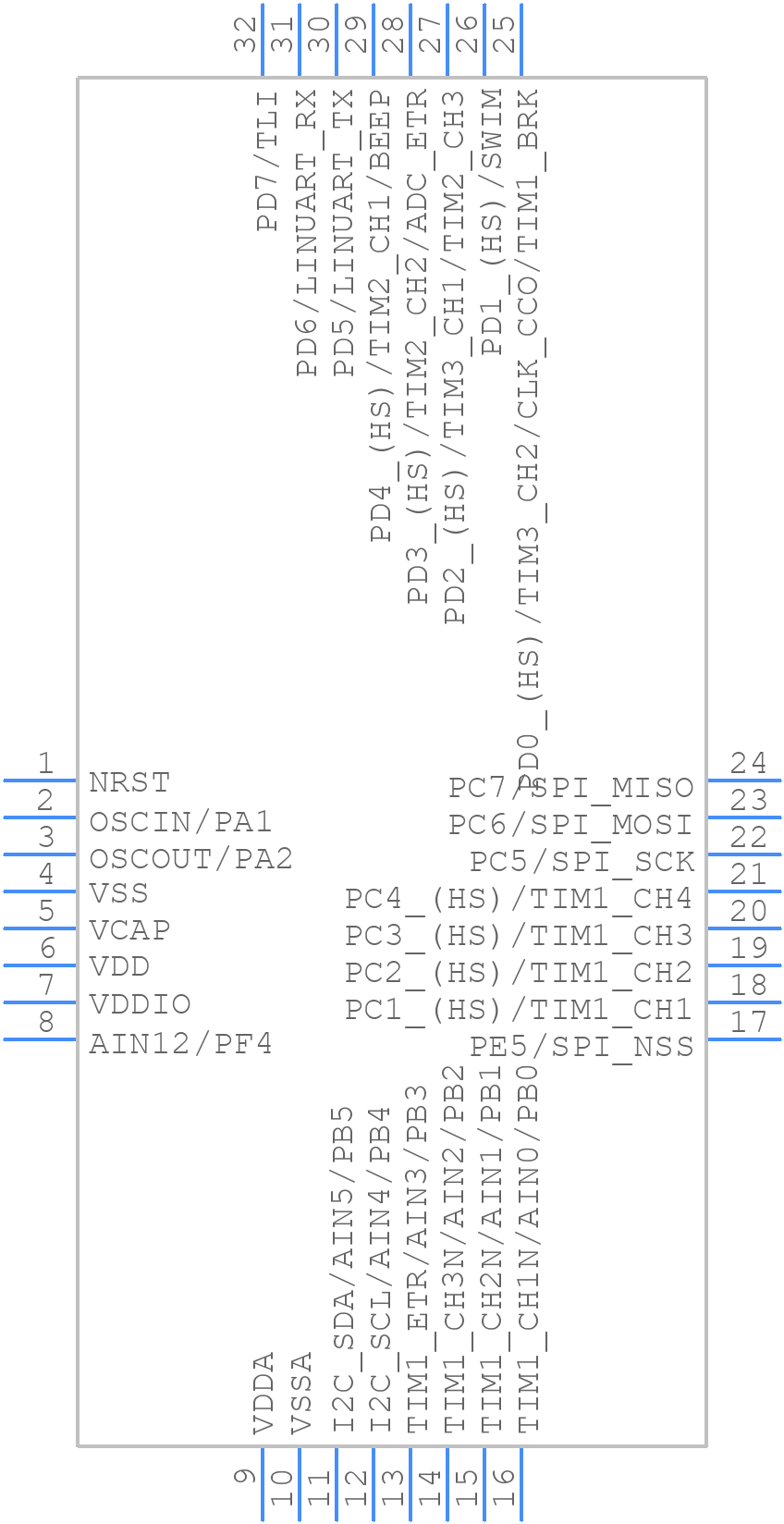

Symbol
STM8AF6266ITCX - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6266ITCX - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom
3D Models
STM8AF6266ITCX - STMicroelectronics - 3D model - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom

STM8AF6266ITCX Details

  • Manufacturer Part Number:

    STM8AF6266ITCX

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Number of I/O Lines:

    24

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8AF6266ITCX Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the STM8AF6266ITCX is 24 MHz, but it can be overclocked up to 32 MHz with some limitations. However, it's recommended to follow the clock frequency specified in the datasheet to ensure reliable operation.
  • The STM8AF6266ITCX has a built-in bootloader that can be configured using the STMicroelectronics-provided software tools, such as the STM8CubeMX. The bootloader can be configured to use various communication interfaces, such as UART, SPI, or I2C, and can be customized to suit specific application requirements.
  • The power consumption of the STM8AF6266ITCX in low-power mode depends on the specific configuration and operating conditions. However, according to the datasheet, the typical current consumption in low-power mode is around 2-3 μA, making it suitable for battery-powered applications.
  • The STM8AF6266ITCX is designed to operate with a 2.95V to 3.6V power supply. While it may be possible to use it with a 5V power supply, it's not recommended as it may exceed the maximum rating and potentially damage the device. A voltage regulator or level shifter may be required to ensure safe operation.
  • The STM8AF6266ITCX has a built-in watchdog timer that can be enabled and configured using the STM8CubeMX software tool or by writing custom code. The watchdog timer can be used to reset the device in case of a software fault or hang, ensuring reliable operation and preventing system crashes.
