STM8AF6266ITCY - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 32 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 V

Download STM8AF6266ITCY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

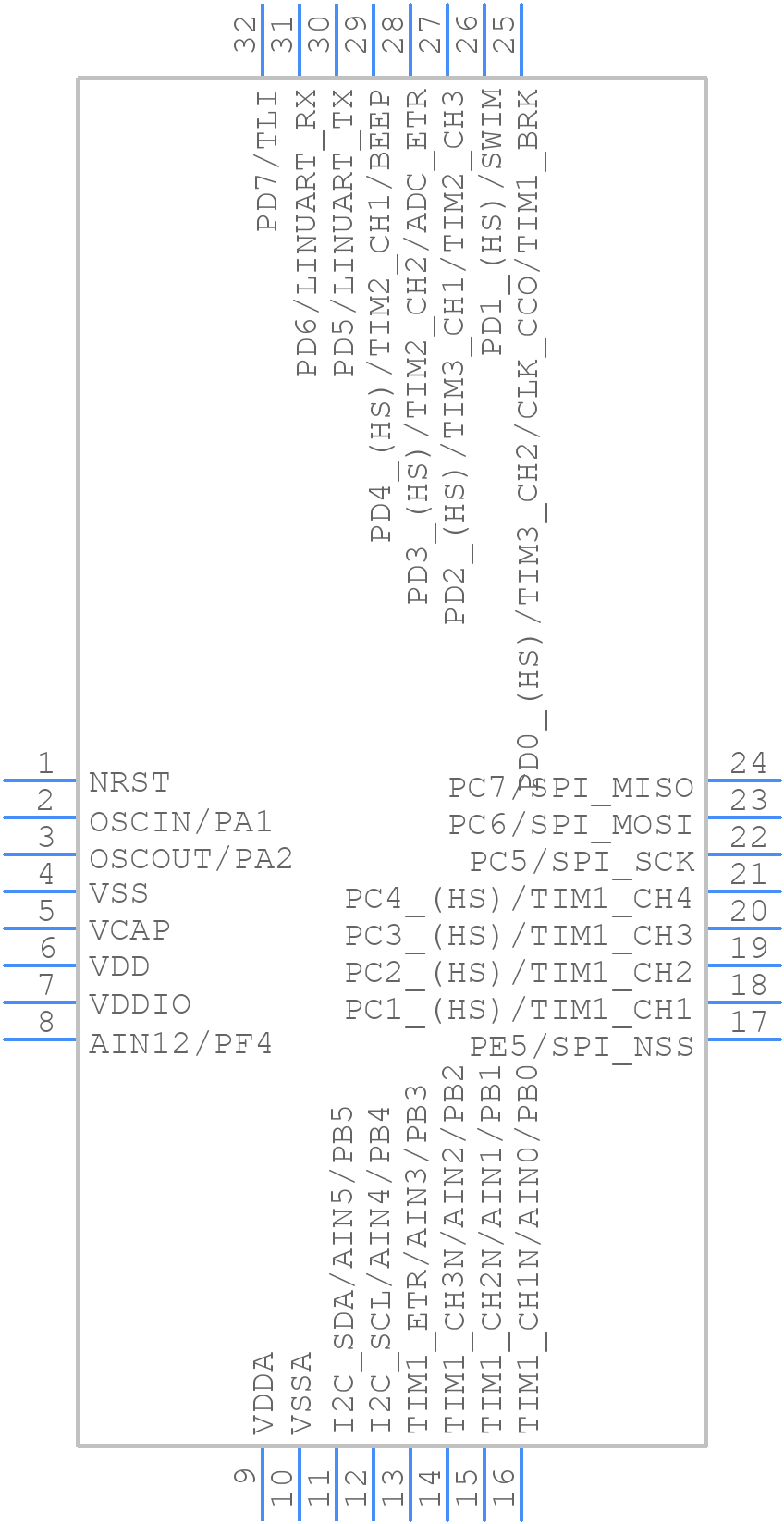

Symbol
STM8AF6266ITCY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6266ITCY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom
3D Models
STM8AF6266ITCY - STMicroelectronics - 3D model - Quad Flat Packages - LQFP32, 7 x 7 mm, 32-pin low-profile quad flat package
click to zoom

STM8AF6266ITCY Details

  • Manufacturer Part Number:

    STM8AF6266ITCY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Number of I/O Lines:

    24

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    16 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8AF6266ITCY Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the STM8AF6266ITCY is 24 MHz, but it can be overclocked up to 32 MHz with some limitations. However, it's recommended to follow the clock frequency specified in the datasheet to ensure reliable operation.
  • The STM8AF6266ITCY has a built-in bootloader that can be configured using the STMicroelectronics-provided software tools, such as the STM8 Bootloader. The bootloader can be configured to use different communication protocols, such as UART, SPI, or I2C, and can be customized to suit specific application requirements.
  • The power consumption of the STM8AF6266ITCY in low-power mode (Halt mode) is typically around 2-3 μA, depending on the clock frequency and other factors. However, this value can be further reduced by using additional power-saving features, such as the Low-Power UART and the Power Management Unit (PMU).
  • The STM8AF6266ITCY is designed to operate at a maximum voltage of 3.6V, and using a 5V power supply may damage the device. However, it's possible to use a voltage regulator or a level shifter to step down the voltage to a safe level for the microcontroller.
  • The STM8AF6266ITCY has a built-in watchdog timer that can be enabled and configured using the WWDG (Window WatchDog) peripheral. The watchdog timer can be used to reset the microcontroller in case of a software fault or a system failure.
