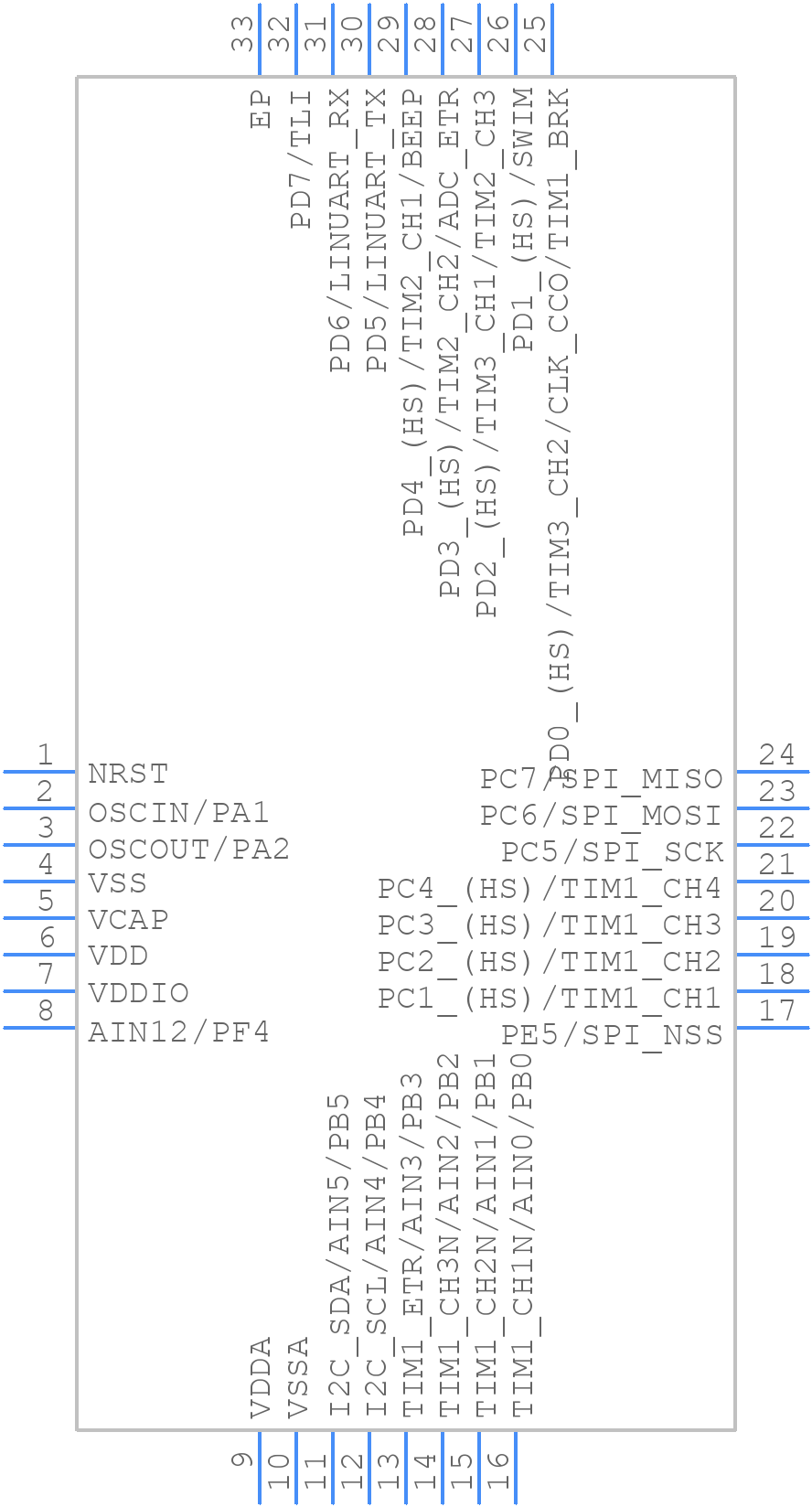

STM8AF6266UCY - STMicroelectronics

STM8AF6266UCY Details

• Manufacturer Part Number:

  STM8AF6266UCY

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  QFN

• Package Description:

  5 X 5 MM, ROHS COMPLIANT, VFQFPN-32

• Pin Count:

  32

• Manufacturer Package Code:

  VFQFPN

• HTS Code:

  8542.31.00.15

• Factory Lead Time:

  53 Weeks, 1 Day

• Manufacturer:

  STMicroelectronics

• YTEOL:

  3

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  ST8

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  S-XQCC-N32

• Length:

  5 mm

• Number of I/O Lines:

  25

• Number of Terminals:

  32

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Qualification Status:

  Not Qualified

• RAM (bytes):

  2048

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1 mm

• Speed:

  16 MHz

• Supply Current-Max:

  14 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
