STM8AF6268TDX - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 32 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 V

Download STM8AF6268TDX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

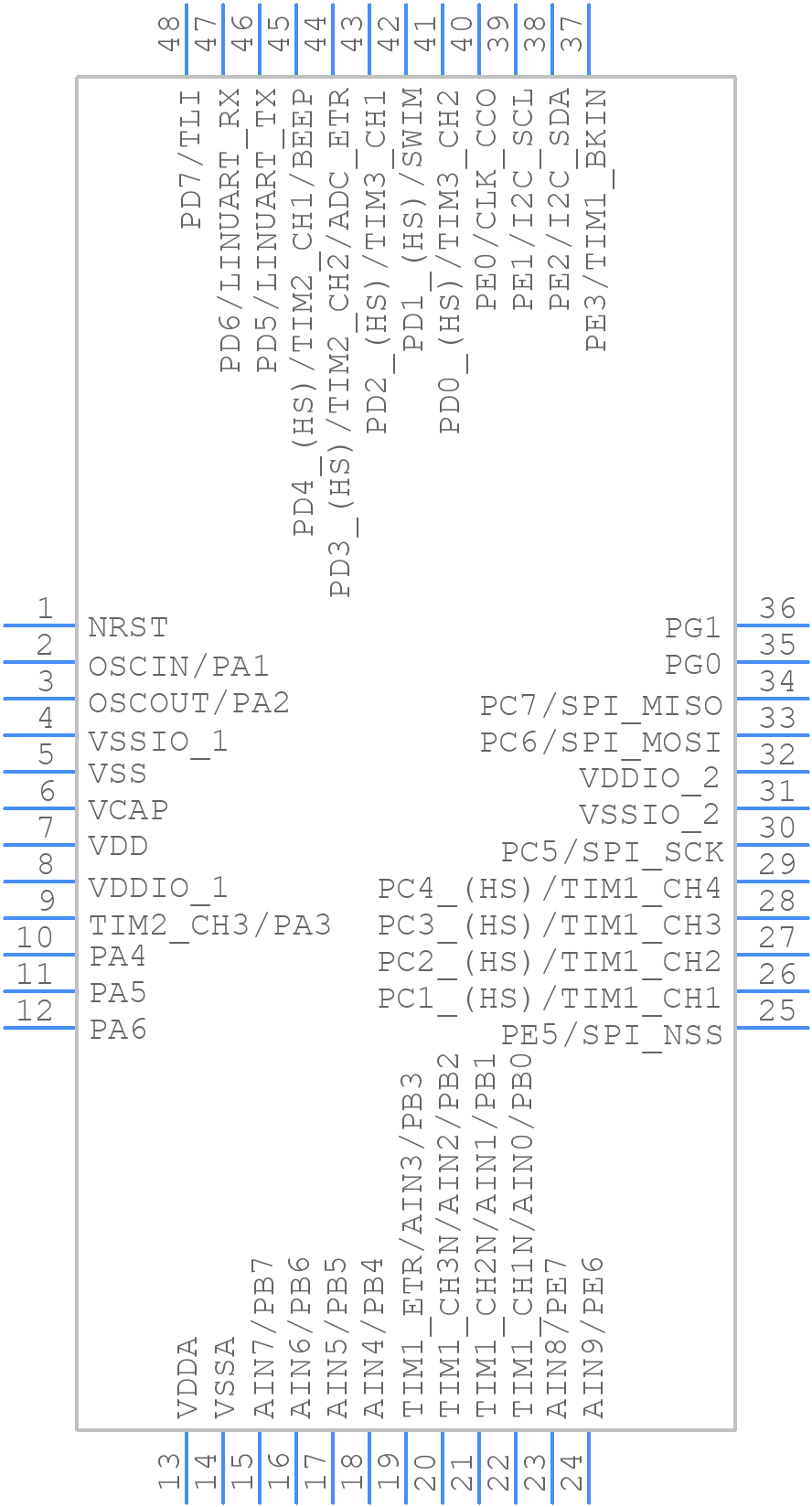

Symbol
STM8AF6268TDX - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6268TDX - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 48 7x7x1.4 mm
click to zoom
3D Models
STM8AF6268TDX - STMicroelectronics - 3D model - Quad Flat Packages - LQFP 48 7x7x1.4 mm
click to zoom

STM8AF6268TDX Details

  • Manufacturer Part Number:

    STM8AF6268TDX

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, ROHS COMPLIANT, LQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    STM8

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    38

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8AF6268TDX Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the STM8AF6268TDX is 24 MHz, but it can be overclocked up to 32 MHz with some limitations. However, it's recommended to follow the clock frequency specified in the datasheet to ensure reliable operation.
  • The STM8AF6268TDX has a built-in bootloader that can be configured using the STMicroelectronics-provided software tools, such as the STM8CubeMX or the STM8AF bootloader software. The bootloader can be configured to use various communication interfaces, such as UART, SPI, or I2C, and can be customized to meet specific application requirements.
  • The maximum amount of current that can be sourced or sunk by the GPIO pins on the STM8AF6268TDX is 20 mA per pin, with a total current limit of 100 mA for all GPIO pins combined. However, it's recommended to limit the current to 10 mA per pin to ensure reliable operation and to prevent overheating.
  • The STM8AF6268TDX is rated for operation in a temperature range of -40°C to 125°C, and can tolerate high humidity environments. However, it's recommended to follow proper design and layout guidelines, such as using moisture-resistant packaging and conformal coating, to ensure reliable operation in harsh environments.
  • The STM8AF6268TDX has several low-power modes, including Halt, Stop, and Low-Power Run modes, which can be implemented using the device's power management unit (PMU). The PMU can be configured to reduce power consumption by shutting down or slowing down various peripherals and clock domains, and can be controlled using software or hardware triggers.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM8AF6268TDX Overview

Use the download button to access the STM8AF6268TDX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM8A, or try a keyword search, such as Microcontrollers
