STM8AF6286TCX - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 128 Kbyte Flash, data EEPROM, 10-bit ADC, timers, LIN, CAN, USART, SPI, I2C, 3 to 5.5 V

Download STM8AF6286TCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

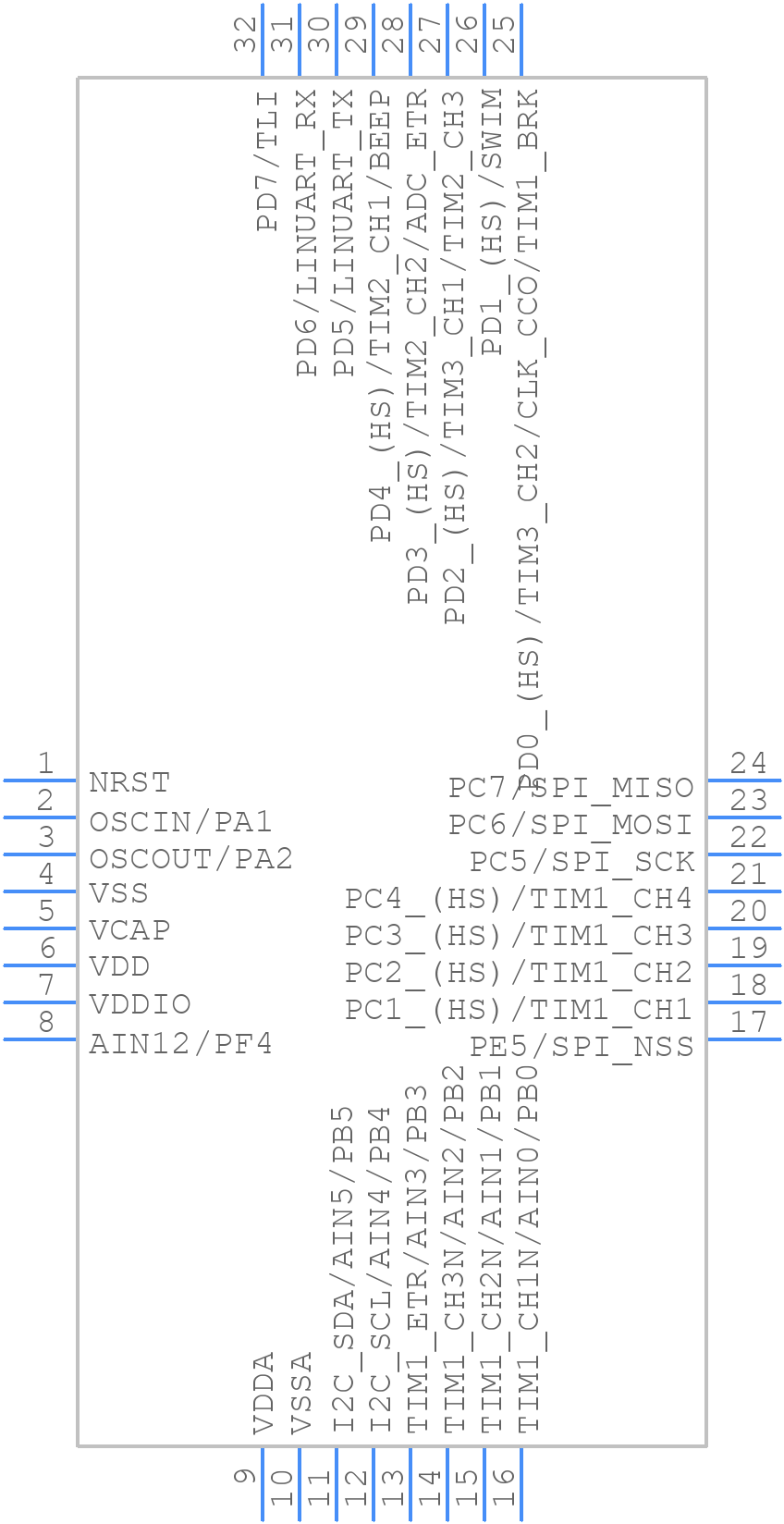

STM8AF6286TCX - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6286TCX - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32
click to zoom
3D Models
STM8AF6286TCX - STMicroelectronics - 3D model - Quad Flat Packages - LQFP32
click to zoom

STM8AF6286TCX Details

  • Manufacturer Part Number:

    STM8AF6286TCX

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-32

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    STM8A

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Number of I/O Lines:

    25

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    32

  • Number of Timers:

    8

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    6144

  • RAM (words):

    3072

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    24 MHz

  • Supply Current-Max:

    16.8 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

STM8AF6286TCX Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the STM8AF6286TCX is 24 MHz, but it can be overclocked up to 32 MHz with some limitations. However, it's recommended to follow the clock frequency specified in the datasheet to ensure reliable operation.
  • The STM8AF6286TCX has a built-in bootloader that can be configured using the STMicroelectronics-provided software tools, such as the STM8CubeMX or the STM8AF62xx Firmware Library. The bootloader can be configured to use various communication interfaces, such as UART, SPI, or I2C, and can be customized to meet specific application requirements.
  • The minimum voltage required for the STM8AF6286TCX to operate is 2.95V, but it's recommended to use a voltage regulator to ensure a stable 3.3V supply to the microcontroller. Operating the device below the recommended voltage may affect its performance and reliability.
  • No, the STM8AF6286TCX is not 5V tolerant, and operating it with a 5V power supply can damage the device. The recommended power supply voltage is 3.3V, and it's essential to use a voltage regulator or a level shifter to ensure the device operates within its specified voltage range.
  • The STM8AF6286TCX has a built-in watchdog timer that can be enabled and configured using the STM8CubeMX software tool or by writing custom code. The watchdog timer can be used to reset the device in case of a software or hardware failure, and its timeout period can be adjusted to meet specific application requirements.
