STM8AF6366TCY - STMicroelectronics

Description: Automotive 8-bit MCU, with up to 32-Kbyte Flash memory, data EEPROM, 10-bit ADC, timers, LIN, SPI, I2C, 3 to 5.5 V

Download STM8AF6366TCY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

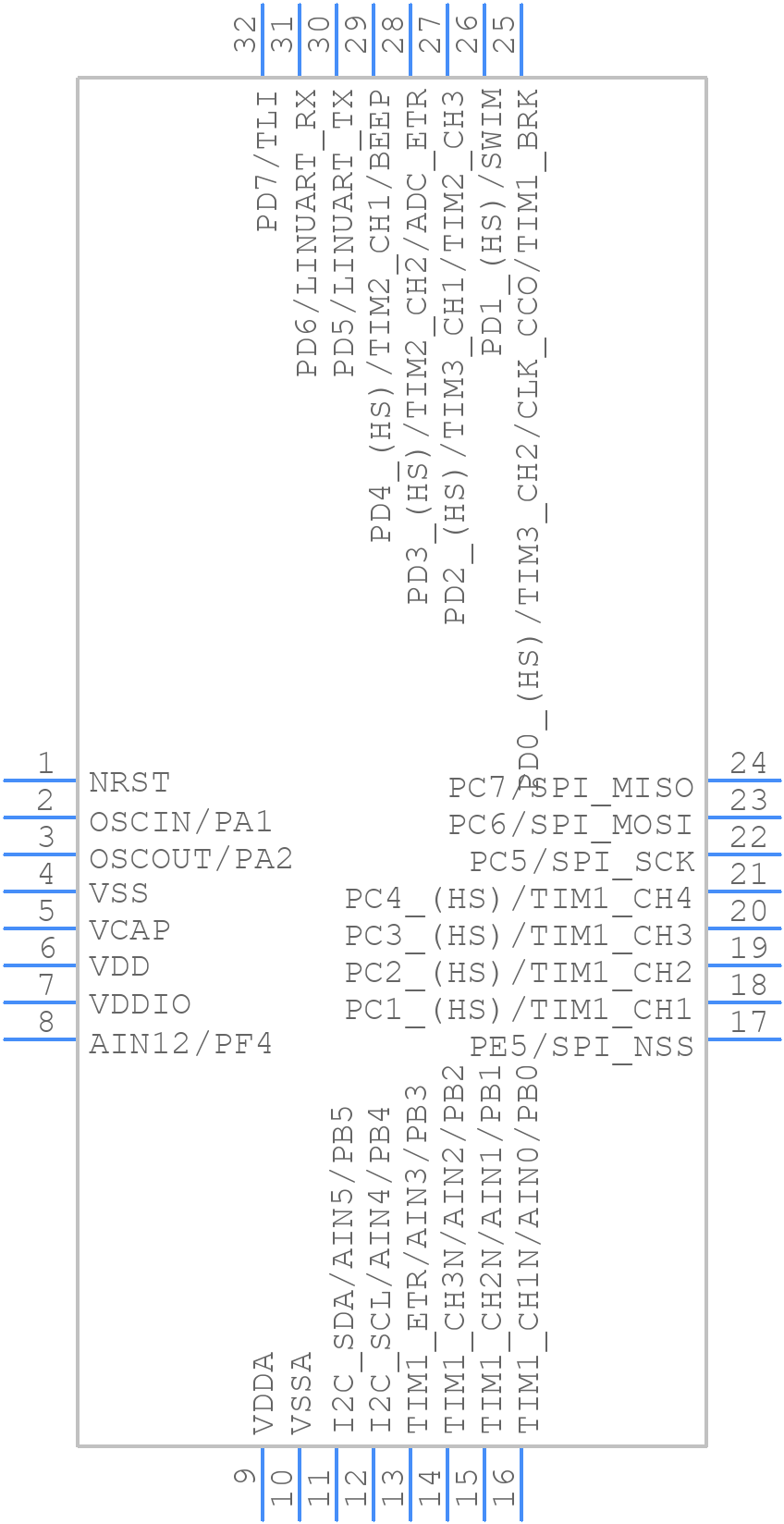

STM8AF6366TCY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AF6366TCY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32
click to zoom
3D Models
STM8AF6366TCY - STMicroelectronics - 3D model - Quad Flat Packages - LQFP32
click to zoom

STM8AF6366TCY Details

  • Manufacturer Part Number:

    STM8AF6366TCY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    STM8A

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Number of External Interrupts:

    5

  • Number of I/O Lines:

    25

  • Number of Serial I/Os:

    1

  • Number of Terminals:

    32

  • Number of Timers:

    5

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    2048

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    14.1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8AF6366TCY Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the STM8AF6366TCY is 24 MHz, but it can be overclocked up to 32 MHz with some limitations. However, it's recommended to follow the clock frequency specified in the datasheet to ensure reliable operation.
  • The STM8AF6366TCY has a built-in bootloader that can be configured using the STMicroelectronics-provided software tools, such as the STM8CubeMX or the STM8AF bootloader software. The bootloader can be configured to use various communication interfaces, such as UART, SPI, or I2C, and can be customized to meet specific application requirements.
  • The minimum voltage required for the STM8AF6366TCY to operate is 2.95V, but it's recommended to use a voltage regulator to ensure a stable 3.3V supply to the microcontroller. Operating the device below the recommended voltage may affect its performance and reliability.
  • No, the STM8AF6366TCY is not 5V tolerant, and operating it with a 5V power supply can damage the device. The recommended power supply voltage is 3.3V, and it's essential to use a voltage regulator or a level shifter to ensure the correct voltage is applied to the microcontroller.
  • The STM8AF6366TCY has a built-in watchdog timer that can be enabled and configured using the WDG registers. The watchdog timer can be set to a specific timeout period, and if the timer is not reset within that period, the microcontroller will reset. The watchdog timer can be used to detect and recover from software faults or hangs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM8AF6366TCY Overview

Use the download button to access the STM8AF6366TCY schematic symbol, PCB footprint, and 3D model.
