STM8AL3136TAY - STMicroelectronics

Description: Automotive 8-bit ultra-low-power MCU, up to 32-Kbyte Flash, RTC, data EEPROM, LCD, timers, USART, I2C, SPI, ADC, DAC, COMPs

Download STM8AL3136TAY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

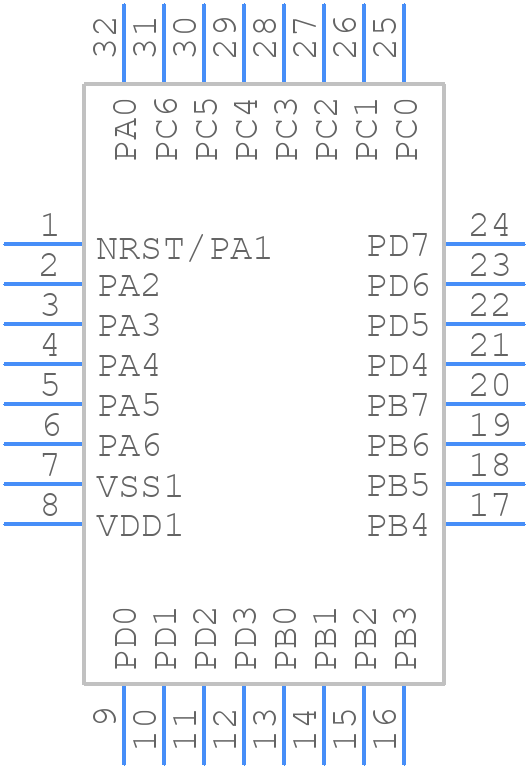

STM8AL3136TAY - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8AL3136TAY - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP32
click to zoom
3D Models
STM8AL3136TAY - STMicroelectronics - 3D model - Quad Flat Packages - LQFP32
click to zoom

STM8AL3136TAY Details

  • Manufacturer Part Number:

    STM8AL3136TAY

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    STM8

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Number of I/O Lines:

    24

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    8196

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8AL3136TAY Frequently Asked Questions (FAQs)

  • The recommended oscillator configuration for the STM8AL3136TAY is to use an external crystal oscillator with a frequency range of 16 MHz to 32 MHz. This provides the most accurate and stable clock signal for the microcontroller.
  • To configure the STM8AL3136TAY for low-power mode, you need to set the PM bit in the FLASH_CR2 register to 1, and then set the HSI clock source to 0 in the CLK_SWCR register. You can also use the HAL_PWR_EnterSleepMode() function from the STM8CubeMX library to put the device in low-power mode.
  • The maximum current consumption of the STM8AL3136TAY depends on the operating frequency and voltage. According to the datasheet, the maximum current consumption is around 15 mA at 16 MHz and 3.3 V, but this can vary depending on the specific application and usage.
  • No, the STM8AL3136TAY is not designed to operate with a 5V power supply. The recommended operating voltage range is 2.95V to 3.63V. Using a 5V power supply may damage the device or affect its performance.
  • The STM8AL3136TAY can be programmed using a serial interface such as UART or SPI. You can use a programming tool such as ST-Link or a third-party programmer, and connect it to the device using a serial interface. You can then use a programming software such as STM8CubeMX or ST Visual Develop to upload the firmware to the device.
