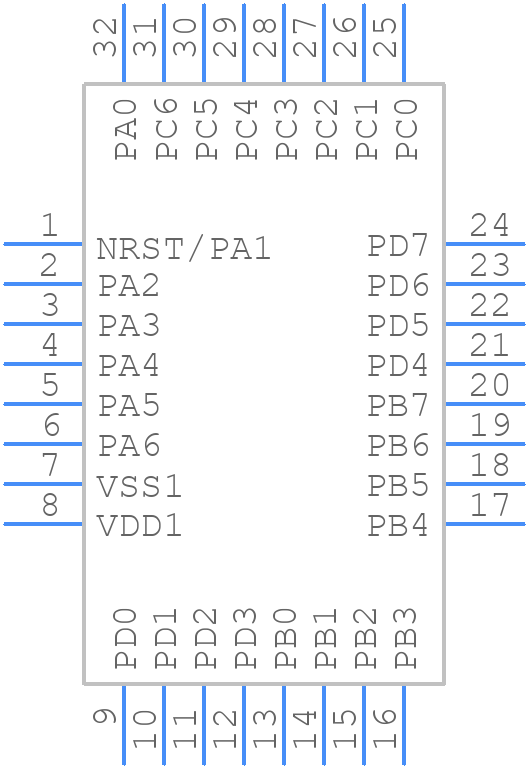

STM8AL3166TAY - STMicroelectronics

STM8AL3166TAY Details

• Manufacturer Part Number:

  STM8AL3166TAY

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.15

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  9

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  STM8

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G32

• Length:

  7 mm

• Number of I/O Lines:

  24

• Number of Terminals:

  32

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LQFP

• Package Equivalence Code:

  QFP32,.35SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• RAM (bytes):

  2048

• ROM (words):

  32768

• ROM Programmability:

  FLASH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.6 mm

• Speed:

  16 MHz

• Supply Current-Max:

  80 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  1.65 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
