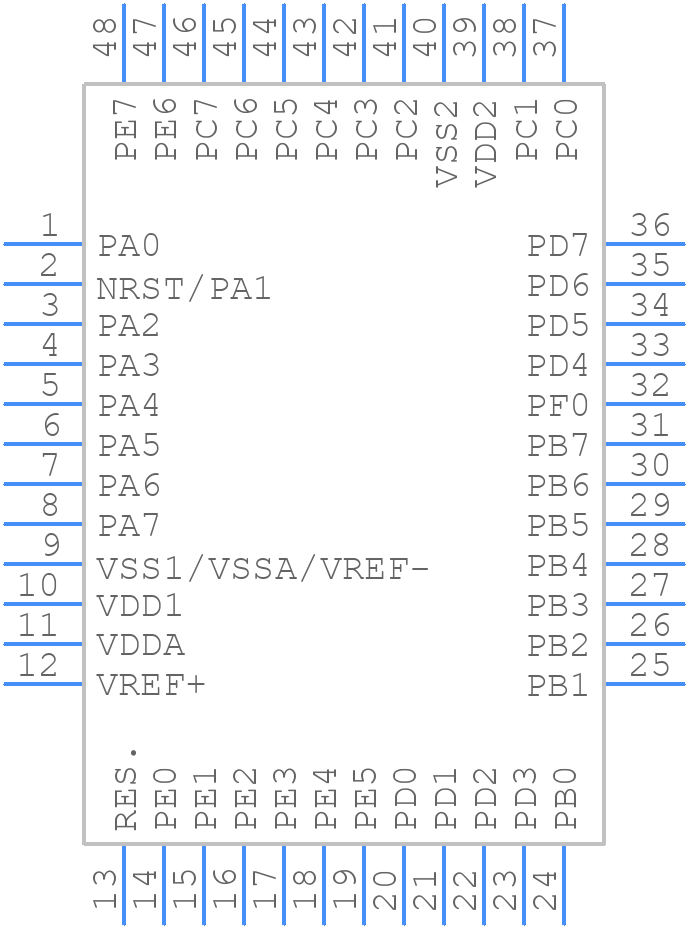

STM8AL31E88TAY - STMicroelectronics

STM8AL31E88TAY Details

• Manufacturer Part Number:

  STM8AL31E88TAY

• Brand Name:

  STMicroelectronics

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Package Description:

  LQFP-48

• Country Of Origin:

  Malaysia

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.15

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  STMicroelectronics

• YTEOL:

  6

• Has ADC:

  YES

• Bit Size:

  8

• Boundary Scan:

  NO

• CPU Family:

  STM8

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e4

• Length:

  7 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  4

• Number of External Interrupts:

  40

• Number of I/O Lines:

  41

• Number of Serial I/Os:

  3

• Number of Terminals:

  48

• Number of Timers:

  6

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  4096

• ROM (words):

  65536

• ROM Programmability:

  FLASH

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.6 mm

• Speed:

  16 MHz

• Supply Current-Max:

  4.75 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
