STM8L151C3T3 - STMicroelectronics

Description: 8-bit ultra-low-power MCU, up to 8 KB Flash, up to 256 bytes data EEPROM, RTC, timers, USART, I2C, SPI, ADC, comparators

Download STM8L151C3T3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

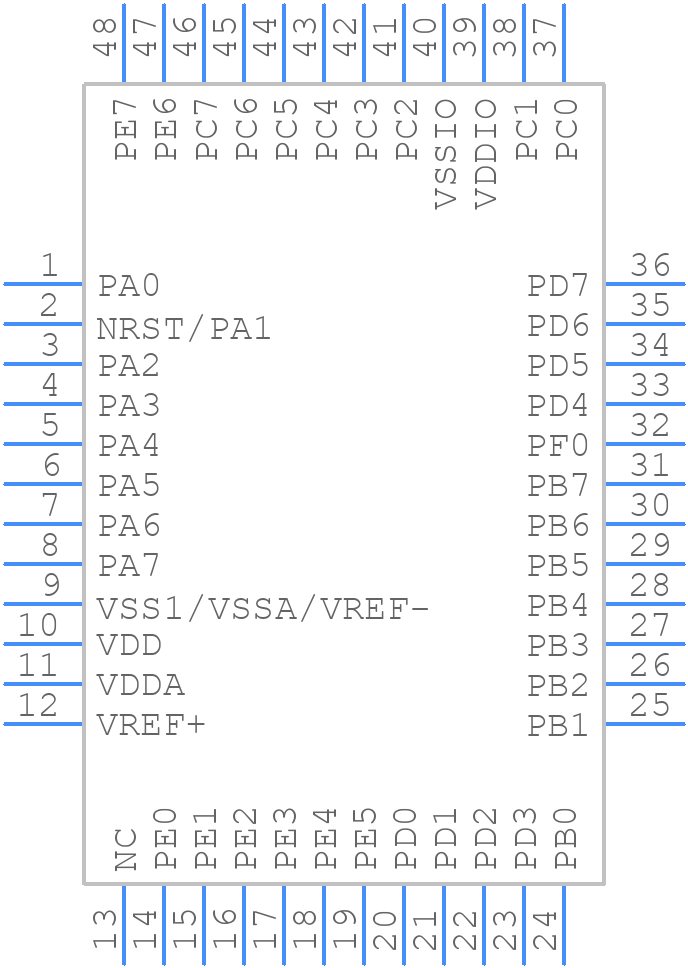

STM8L151C3T3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8L151C3T3 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - . LQFP48 mechanical data
click to zoom
3D Models
STM8L151C3T3 - STMicroelectronics - 3D model - Quad Flat Packages - . LQFP48 mechanical data
click to zoom

STM8L151C3T3 Details

  • Manufacturer Part Number:

    STM8L151C3T3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • CPU Family:

    STM8

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    40

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1024

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    4.88 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8L151C3T3 Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 16 MHz, but it depends on the voltage and temperature range. Refer to the datasheet for more information on the oscillator frequency range and its dependencies.
  • To configure the WDT, you need to set the WDP bits in the WDT control register (WDT_CR) to select the timeout period, and then enable the WDT by setting the WDTE bit. You can also use the WDT prescaler to adjust the timeout period.
  • The BOR feature resets the microcontroller when the supply voltage falls below a certain threshold. To configure the BOR, you need to set the BORV bits in the Power Management Control Register (PMC_CTRL) to select the voltage threshold, and then enable the BOR by setting the BOREN bit.
  • To use the UART peripheral, you need to configure the UART clock, set the baud rate, and enable the transmitter and receiver. You can then use the UART data register (UART_DR) to send and receive data. Don't forget to configure the UART mode (e.g., asynchronous or synchronous) and the word length (e.g., 7 or 8 bits).
  • The reset pin (RST) is an active-low input that resets the microcontroller when it is driven low. You can use an external reset signal or a push-button to drive the RST pin low to reset the microcontroller. The RST pin can also be used to wake up the microcontroller from a low-power mode.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM8L151C3T3 Overview

Use the download button to access the STM8L151C3T3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM8L, or try a keyword search, such as Microcontrollers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
