STM8L151G6U7TR - STMicroelectronics

Description: 8-bit ultra-low-power MCU, up to 32 KB Flash, 1 KB Data EEPROM, RTC, LCD, timers, USART, I2C, SPI, ADC, DAC, comparators

Download STM8L151G6U7TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

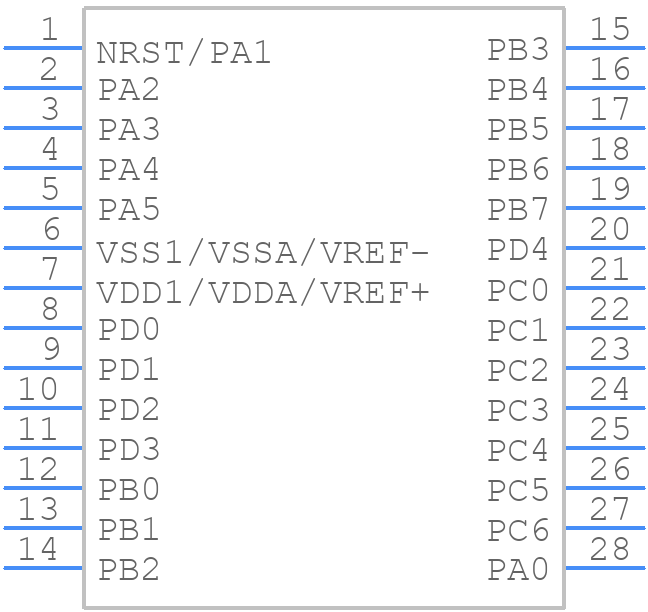

STM8L151G6U7TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8L151G6U7TR - STMicroelectronics PCB footprint - Other - Other - UFQFPN28 - 28-lead, 4 x 4 mm_2022
click to zoom
3D Models
STM8L151G6U7TR - STMicroelectronics - 3D model - Other - UFQFPN28 - 28-lead, 4 x 4 mm_2022
click to zoom

STM8L151G6U7TR Details

  • Manufacturer Part Number:

    STM8L151G6U7TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.15

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    NO

  • CPU Family:

    ST8

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    4 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    40

  • Number of I/O Lines:

    26

  • Number of Terminals:

    28

  • Number of Timers:

    4

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.6 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

STM8L151G6U7TR Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 16 MHz, but it's recommended to use a clock frequency of up to 12 MHz to ensure reliable operation.
  • To configure the WDT, you need to set the WDP bits in the WDT control register (WDT_CR) to select the timeout period, and then enable the WDT by setting the WDTE bit. You can also configure the WDT to reset the MCU by setting the RST bit in the WDT control register.
  • Yes, the UART peripheral on the STM8L151G6U7TR can be configured to use a variety of baud rates. You can set the baud rate by programming the USART_BRR registers, which allow you to divide the clock frequency by a specific value to generate the desired baud rate.
  • To enable the BOR feature, you need to set the BOREN bit in the Power Control Register (PWR_CR). You can also configure the voltage threshold by programming the BORV bits in the Power Control Register.
  • Yes, the internal flash memory on the STM8L151G6U7TR can be used to store data that needs to be retained even when the power is turned off. However, you need to ensure that the data is stored in a flash page that is not used by the program code, and that the flash page is properly erased and written before storing the data.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM8L151G6U7TR Overview

Use the download button to access the STM8L151G6U7TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM8L, or try a keyword search, such as Microcontrollers
