STM8T143AM62T - STMicroelectronics

Description: Single-channel capacitive sensor for touch and proximity detection

Download STM8T143AM62T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

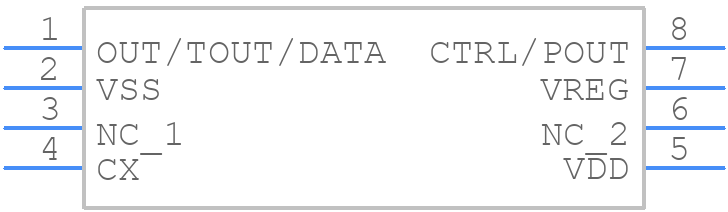

STM8T143AM62T - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STM8T143AM62T - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8-lead plastic small outline-1
click to zoom
3D Models
STM8T143AM62T - STMicroelectronics - 3D model - Small Outline Packages - SO8-lead plastic small outline-1
click to zoom

STM8T143AM62T Details

  • Manufacturer Part Number:

    STM8T143AM62T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.75 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    0.075 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    1-WIRE INTERFACE

  • Output Range:

    0.07-4.9V

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    850000 µs

  • Sensors/Transducers Type:

    PROXIMITY SENSOR,CAPACITIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.3 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

STM8T143AM62T Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 16 MHz, but it's recommended to use a maximum of 12 MHz to ensure stability and accuracy.
  • To configure the WDT to reset the microcontroller, you need to set the WDT prescaler to a non-zero value, enable the WDT, and then write a value to the WDT counter register. The WDT will then reset the microcontroller if the counter reaches zero before being reloaded.
  • No, the UART in the STM8T143AM62T only supports asynchronous mode. Synchronous mode is not available.
  • To enable the internal pull-up resistors on the GPIO pins, you need to set the corresponding bit in the GPIOx_PUSR register. For example, to enable the pull-up resistor on GPIO port A, pin 0, you would set bit 0 in the GPIOA_PUSR register.
  • The minimum voltage required to program the microcontroller using the ICSP interface is 2.7V. However, it's recommended to use a voltage of at least 3.3V to ensure reliable programming.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STM8T143AM62T Overview

Use the download button to access the STM8T143AM62T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like STM8T, or try a keyword search, such as Proximity Sensors
