STMM-110-02-G-D-RA - SAMTEC

Description: Conn Shrouded Header HDR 20 POS 2mm Solder RA Thru-Hole Tube

Download STMM-110-02-G-D-RA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
STMM-110-02-G-D-RA - SAMTEC - PCB symbol
click to zoom
PCB Footprints

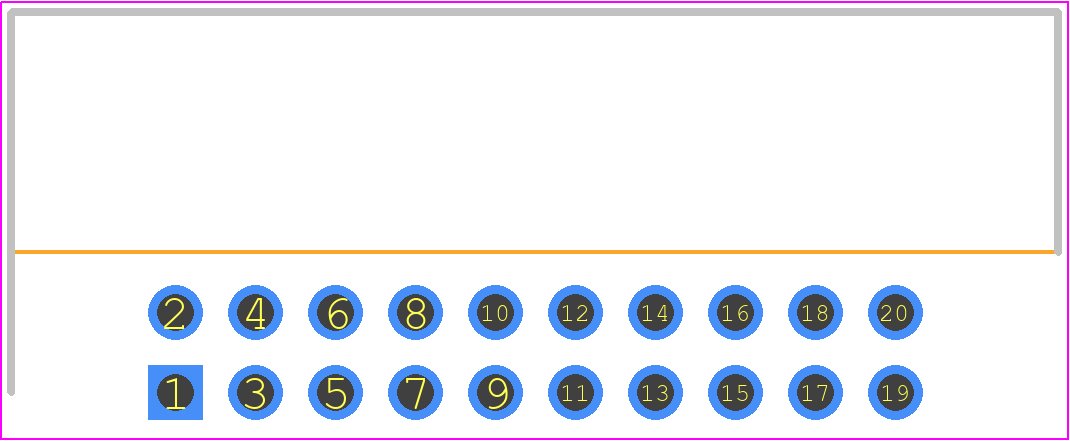

STMM-110-02-G-D-RA - SAMTEC PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - STMM-110-02-G-D-RA
click to zoom
3D Models
STMM-110-02-G-D-RA - SAMTEC - 3D model - Header, Shrouded - Right Angle PTH Box - STMM-110-02-G-D-RA
click to zoom

STMM-110-02-G-D-RA Details

  • Manufacturer Part Number:

    STMM-110-02-G-D-RA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD (20) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    3 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

STMM-110-02-G-D-RA Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the STMM-110-02-G-D-RA connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the STMM-110-02-G-D-RA connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
  • The maximum operating temperature for the STMM-110-02-G-D-RA connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the connector's performance at higher temperatures to ensure reliable operation.
  • The STMM-110-02-G-D-RA connector is not designed for use in wet or humid environments. Samtec recommends using a connector with a higher ingress protection rating (IP rating) or applying a conformal coating to protect the connector from moisture.
  • The recommended mating cycle for the STMM-110-02-G-D-RA connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

STMM-110-02-G-D-RA Overview

Use the download button to access the STMM-110-02-G-D-RA schematic symbol, PCB footprint, and 3D model.
